Amber L. Simpson and Burton Ma and Elvis C. S. Chen and Randy E. Ellis and A. James Stewart.
Using Registration Uncertainty Visualization in a User Study of a Simple Surgical Task.
In Medical Image Computing and Computer-Assisted Intervention. (MICCAI 2006), vol. 4191, pp. 397--404, 2006.

Links:

Abstract:

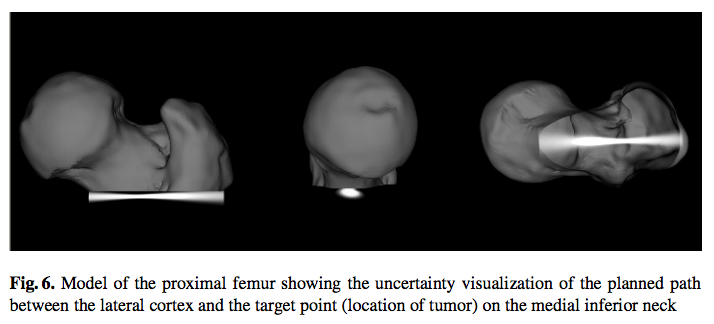

We present a novel method to visualize registration uncertainty and a simple study to motivate the use of uncertainty visualization in computer-assisted surgery. Our visualization method resulted in a statistically significant reduction in the number of attempts required to localize a target, and a statistically significant reduction in the number of targets that our subjects failed to localize. Most notably, our work addresses the existence of uncertainty in guidance and offers a first step towards helping surgeons make informed decisions in the presence of imperfect data.

Bibtex:

@InProceedings{  simpson:2006:URUV,
  author = 	 {Amber L. Simpson and Burton Ma and Elvis C. S. Chen
                  and Randy E. Ellis and A. James Stewart},
  title = 	 {Using Registration Uncertainty Visualization in a
                  User Study of a Simple Surgical Task},
  booktitle =    {Medical Image Computing and Computer-Assisted
                  Intervention. (MICCAI 2006)},
  pages = 	 {397--404},
  year = 	 {2006},
  volume = 	 {4191},
  series = 	 {Lecture Notes in Computer Science},
}

Images:

References:

1. David H. Laidlaw et al.: Comparing 2D vector field visualization methods: A user study. IEEE Transactions on Visualization and Computer Graphics 11 (2005) 59-70
2. Vellido, A., Lisboa, P.J.: Handling outliers in brain tumor MRS data analysis through robust topographic mapping. Computers in Biology and Medicine To Appear (2006)
3. N. B. Karayiannia et al.: Quantifying and visualizing uncertainty in EEG data of neonatal seizures. In: Proc of the 26th Annual International Conference of the IEEE EMBS. (2004)
4. Jones, D.K.: Determining and visualizing uncertainty in estimates of fiber orientation from diffusion tensor MRI. Magnetic Resonance in Medicine 49 (2003) 7-12
5. T. McCormick et al.: Target volume uncertainty and a method to visualize its effect on the target dose prescription. International Journal of Radiation Oncology Biology Physics 60 (2004) 1580-1588
6. Dahlin, D.C., Unni, K.: Bone Tumors: General Aspects and Data on 8,542 Cases. 4 edn. Thomas, Springfield, Ill. (1986)
7. Ellis, R.E., Kerr, D., Rudan, J.F., Davidson, L.: Minimally invasive excision of deep bone tumors. In Niessen, W.J., Viergever, M.A., eds.: MICCAI, LNCS #2208, Springer (2001)
8. Ma, B., Ellis, R.E.: Surface-based registration with a particle filter. In Barillot, C., Haynor, D., Hellier, P., eds.: MICCAI, LNCS #3216, Springer (2004) 566-573
9. Besl, P., McKay, N.: A method for registration of 3-D shapes. IEEE Transactions on Pattern Analysis and Machine Intelligence 14 (1992) 239-256
10. Vlassis, N., Likas, A.: A greedy EM algorithm for Gaussian mixture learning. Neural Processing Letters 15 (2002) 77-87
11. Fernando, R., ed.: Volume Rendering Techniques. In: GPU Gems: Programming Techniques, Tips, and Tricks for Real-Time Graphics. Addison-Wesley, New York (2004)
12. Sheskin, D.J.: Handbook of Parametric and Nonparametric Tests. 3 edn. Chapman & Hall, Boca Raton (2004)
