Derek K. Jones.
Determining and Visualizing Uncertainty in Estimates of Fiber Orientation from Diffusion Tensor MRI.
In Magnetic Resonance in Medicine, vol. 49, pp. 7-12, 2003.

Links:

Abstract:

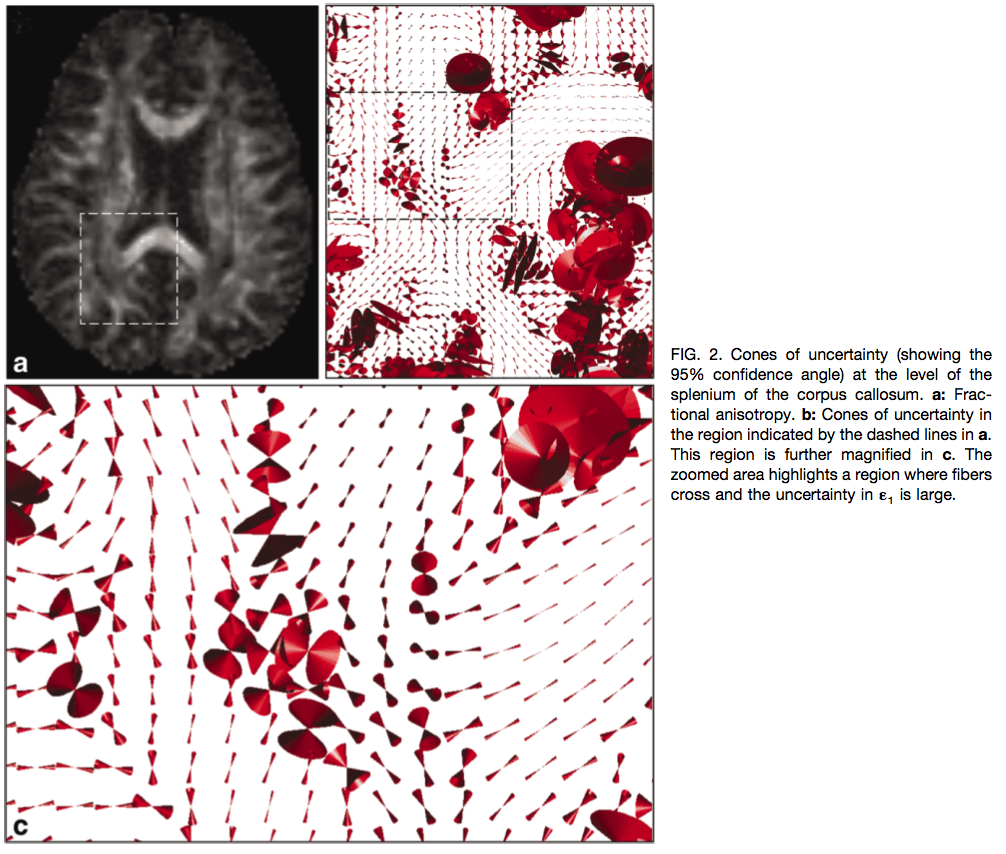

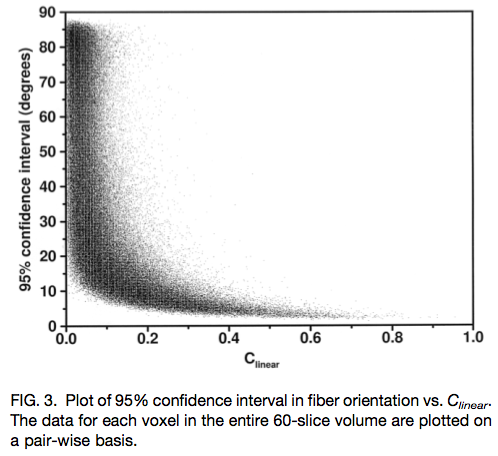

Diffusion tensor MRI (DT-MRI) permits determination of the dominant orientation of structured tissue within an image voxel. This has led to the development of 2D graphical methods for representing fiber orientation and DT-MRI "tractography," which aims to reconstruct the 3D trajectories of white matter fasciculi. Most contemporary fiber orientation mapping schemes and tractography algorithms employ the directional information contained in the eigenvectors of the diffusion tensor to approximate white matter fiber orientation. However, while the uncertainty associated with every estimate of an eigenvector has long been recognized, no attempts to quantify this uncertainty in vivo have been reported. Here, a method is proposed for determining confidence intervals in fiber orientation from real DT-MRI data using the bootstrap method. This is used to construct maps of the "cone of uncertainty," allowing simultaneous viewing of fiber orientation and its uncertainty, and to examine the relationship between orientation uncertainty and tissue anisotropy.

Bibtex:

@Article{        jones:2003:UDTI,
  author = 	 {Derek K. Jones},
  title = 	 {Determining and Visualizing Uncertainty in Estimates
                  of Fiber Orientation from Diffusion Tensor MRI},
  journal = 	 {Magnetic Resonance in Medicine},
  year = 	 {2003},
  volume = 	 {49},
  pages = 	 {7-12},
}

Images:

References:

Moseley ME, Cohen Y, Kucharczyk J, Mintorovitch J, Agari HS, Wendland HF, Tsuruda J, Norman D. Diffusion-weighted MR imaging of anisotropic water diffusion in cat central nervous system. Radiology 1990; 176: 439-445.
Douek P, Turner R, Pekar J, Patronas N, Le Bihan D. MR color mapping of myelin fiber orientation. J Comput Assist Tomogr 1991; 15: 923-929.
Basser PJ, Le Bihan D. Fiber orientation mapping in an anisotropic medium with NMR diffusion spectroscopy. In: Proc 11th Annual Meeting SMRM, Berlin, 1992. p 1221.
Jones DK, Williams SCR, Horsfield MA. Full representation of white matter fibre direction on one map via diffusion tensor analysis. In: Proc 5th Annual Meeting ISMRM, Vancouver, 1997. p 1743.
Pierpaoli C. Oh no! One more method for color mapping of fiber tract direction using diffusion MR imaging data. In: Proc 5th Annual Meeting ISMRM, Vancouver, 1997. p 1741.
Pajevic S, Pierpaoli C. Color schemes to represent the orientation of anisotropic tissues from diffusion tensor data: application to white matter fiber tract mapping in the human brain (published erratum appears in Magn Reson Med 2000;43:921). Magn Reson Med 1999; 42: 526-540.
Mori S, Crain BJ, Chacko VP, van Zijl PC. Three dimensional tracking of axonal projections in the brain by magnetic resonance imaging. Ann Neurol 1999; 45: 265-269.
Conturo TE, Lori NF, Cull TS, Akbudak E, Snyder AZ, Shimony JS, McKinstry RC, Burton M, Raichle ME. Tracking neuronal fiber pathways in the living human brain. Proc Natl Acad Sci USA 1999; 96: 10422-10427.
Jones DK, Simmons A, Williams SCR, Horsfield MA. Non-invasive assessment of axonal fiber connectivity in the human brain via diffusion tensor MRI. Magn Reson Med 1999; 42: 37-41.
Poupon C, Clark CA, Frouin V, Regis J, Bloch I, Le Bihan D, Mangin J. Regularization of diffusion-based direction maps for the tracking of brain white matter fasciculi. NeuroImage 2000; 12: 184-195.
Koch M, Glauche V, Finsterbusch J, Nolte U, Frahm J, B{\"c}hel C. Estimation of anatomical connectivity from diffusion tensor data. NeuroImage 2001; 13: S176.
Tuch DS, Wiegell MR, Reese TG, Belliveau JW, Wedeen VJ. Measuring cortico-cortical connectivity matrices with diffusion spectrum imaging. In: Proc 9th Annual Meeting ISMRM, Glasgow, 2001. p 502.
Parker GJM, Barker GJ, Buckley DL. A probabilistic index of connectivity (PICo) determined using a Monte Carlo approach to streamlines. ISMRM Workshop Diffusion MRI: Biophysical Issues. St Malo, France, March, 2002.
Coulon O, Alexander D, Arridge SR. Principal diffusion direction field regularisation for diffusion tensor magnetic resonance images. In: Proc 9th Annual Meeting ISMRM, Glasgow, 2001. p 125.
Jones DK. A least squares continuous diffusion tensor field approximation. NeuroImage 2001; 13: S168.
Pajevic S, Aldroubi A, Basser PJ. A continuous tensor field approximation of discrete DT-MRI data for extracting microstructural and architectural features of tissue. J Magn Reson 2002; 154: 85-100.
Wittenbrink CM, Pang AT, Lodha SK. Glyphs for visualizing uncertainty in vector fields. IEEE Trans Visual Comput Graph 1996; 2: 266-279.
Basser, PJ. Quantifying errors in fibre-tract direction and diffusion tensor field maps resulting from MR noise. In: Proc 5th Annual Meeting ISMRM, Vancouver, 1997. p 1740.
Efron B. Bootstrap methods: another look at the jackknife. Ann Statist 1979; 7: 1-16.
Pajevic S, Basser PJ. Non-parametric statistical analysis of diffusion tensor MRI data using the bootstrap method. In: Proc 7th Annual Meeting ISMRM, Philadelphia, 1999. p 1790.
Hasan KM, Parker DL, Alexander AL. Bootstrap analysis of DT-MRI encoding techniques. In: Proc 8th Annual Meeting ISMRM, Denver, 2000. p 789.
Lazar M, Hasan KM, Alexander AL. Bootstrap analysis of DT-MRI tractography techniques: streamlines and tensorlines. In: Proc 9th Annual Meeting ISMRM, Glasgow, 2001. p 1527.
Jones DK, Williams SCR, Gasston D, Horsfield MA, Simmons A, Howard R. Isotropic resolution diffusion tensor imaging with whole brain acquisition in a clinically acceptable time. Hum Brain Map 2002; 15: 216-230.
Basser PJ, Matiello J, Le Bihan D. Estimation of the effective self-diffusion tensor from the NMR spin echo. J Magn Reson Ser B 1994; 103: 247-254.
Basser PJ, Pajevic S. Statistical artefacts in diffusion tensor MRI (DT-MRI) caused by background noise. Magn Reson Med 2000; 44: 41-50.
Efron B. The jackknife, the bootstrap and other resampling methods, vol. 38. CBMS-NSF regional conference series in applied mathematics, SIAM, 1982.
Westin CF, Peled S, Gudbjartsson H, Kikinis R, Jolesz FA. Geometrical diffusion measures for MRI from tensor basis analysis. In: Proc 5th Annual Meeting ISMRM, Vancouver, 1997. p 1742.
Pierpaoli C, Basser PJ. Toward a quantitative assessment of diffusion anisotropy. Magn Reson Med 1996; 36: 893-906.
Basser PJ, Pierpaoli C. Microstructural and physiological features of tissue elucidated by quantitative-diffusion-tensor MRI. J Magn Reson B 1996; 111: 209-219.
Xu D, Mori S, Shen D, Davatzikos C. Statistically-based reorientation of diffusion tensor field. In: Proc IEEE International Symposium on Biomedical Imaging: Macro to Nano, Washington, DC, 2002. p 757-760.
Tuch DS, Weisskoff RM, Belliveau JW, Wedeen VJ. High angular resolution diffusion imaging of the human brain. In: Proc 7th Annual Meeting ISMRM, Philadelphia, 1999. p 321.
Wedeen VJ, Reese TG, Tuch DS, Weigell M, Dou J-G, Weisskoff RM, Chesler D. 2000. Mapping fiber orientation spectra in cerebral white matter with Fourier transform diffusion MRI. In: Proc 8th Annual Meeting ISMRM, Denver, 2000. p 82.
