Tomislav Hengl.
Visualisation of Uncertainty using the HSI Colour Model: Computations with Colours.
In Proceedings of the 7th International Conference on GeoComputation, pp. 1--12, 2003.

Links:

Abstract:

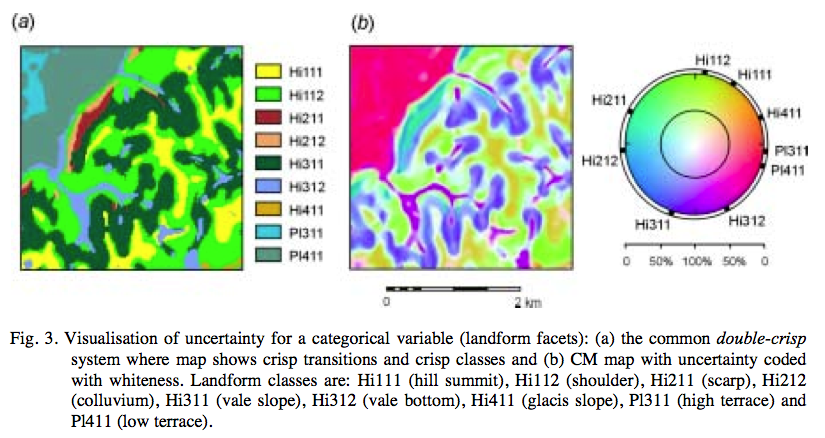

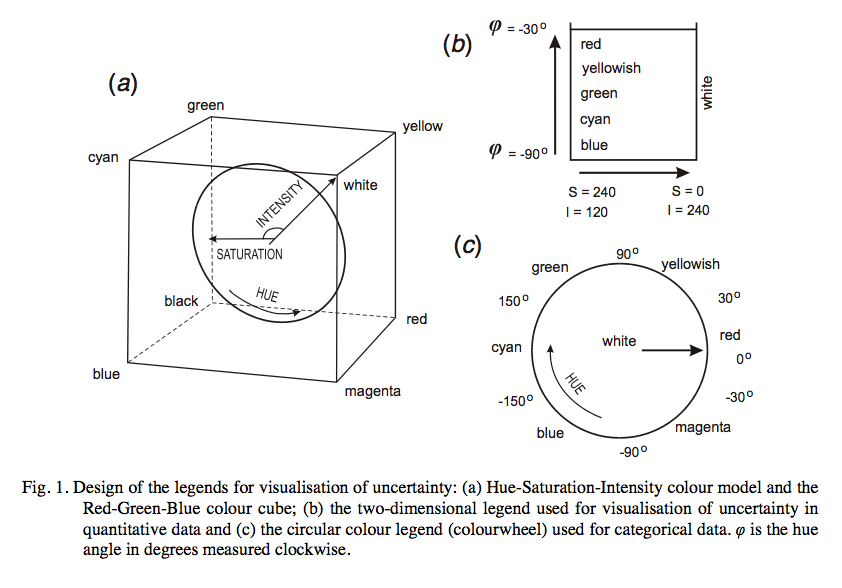

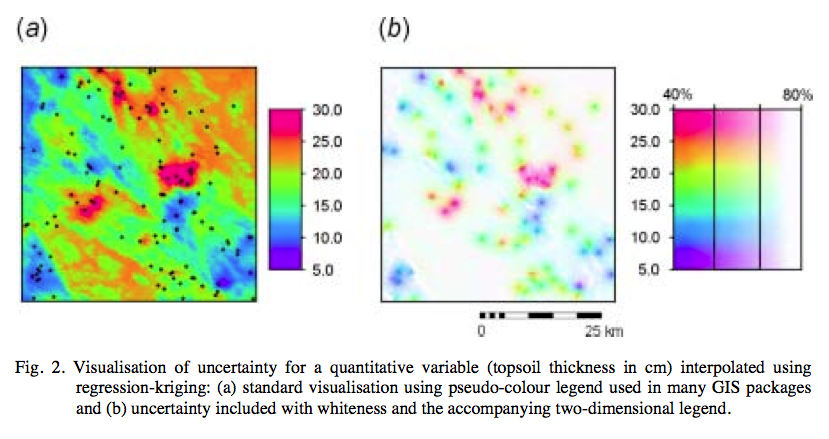

Paper describes two GIS methods for visualisation of uncertainty associated with spatial prediction of continuous and categorical variables. In the case of continuous variables, the key issue is to visualise both predictions and the prediction error at the same time, while in the case of categorical data, the key issue is to visualise multiple memberships and confusion in-between them. Both methods are based on the Hue-Saturation-Intensity (HSI) colour model and calculations with colours using the colour mixture (CM) concept. The HSI is a psychologically appealing colour model - hue is used to visualise values or taxonomic space and whiteness (paleness) is used to visualise the uncertainty. In the case of continuous variables, a two- dimensional legend was designed to accompany the visualisations - vertical axis (hues) is used to visualise the predicted values and horizontal axis (whiteness) is used to visualise the prediction error. In the case of categorical variables, a circular legend is used - perimeter (hues) defines the taxonomic space and radial distance represents the confusion. The methods are illustrated using two examples: (a) interpolation of soil thickness using regression-kriging and (b) fuzzy k-means classification of landforms classes.

Bibtex:

@Article{        hengl:2003:UHSI,
  author = 	 {Tomislav Hengl},
  title = 	 {Visualisation of Uncertainty using the HSI Colour
                  Model: Computations with Colours},
  journal = 	 {Proceedings of the 7th International Conference on
                  GeoComputation},
  year = 	 {2003},
  pages =        {1--12},
}

Images:

References:


BURROUGH, P.A., GAANS, P.F.M. and VAN HOOTSMANS, R., 1997. Continuous classification in soil survey: spatial correlation, confusion and boundaries. Geoderma, 77, 115-135.
CRESSIE, N.A.C., 1993. Statistics for Spatial Data (New York: John Wiley & Sons).
FOODY, G.M. and ATKINSON, P.M., 2002. Uncertainty in Remote Sensing and GIS. (London: Wiley Europe).
GABRIEL, K.R., 1971. The biplot graphical display of matrices with applications to principal component analysis. Biometrika, 58, 453-467.
GOODCHILD, M., CHIH-CHANG, L. and LEUNG, Y., 1994. Visualizing Fuzzy Maps. In: H.M. Hearnshaw and D.J. Unwin (Editors), Visualisation in Geographical Information Systems (London: John Wiley and Sons Ltd.), pp. 158-167.
HENGL, T., WALVOORT, D.J.J., BROWN, A. and ROSSITER, D.G., 2003a. A double continuous approach to visualisation and analysis of categorical maps. Int. Jou. of Geographical Information Science, in press.
HENGL, T., HEUVELINK, G.M.B. and STEIN, A., 2003b. A generic framework for spatial prediction of soil variables based on regression-kriging. Geoderma, in press.
HEUVELINK, G.B.M. and LEMMENS, M.J.P.M., 2000. Proceedings of the 4th International Symposium on Spatial Accuracy Assesment in Natural Resources and Environmental Sciences (Accuracy 2000) (Amsterdam: Delft University Press).
HOOTSMANS, R.M., 1996. Fuzzy sets and series analysis for visual decision support in spatial data exploration. PhD Thesis, (Utrecht: University of Utrecht).
HUNTER, G.J. and LOWELL, K., 2002. Proceedings of the 5th International Symposium on Spatial Accuracy Assesment in Natural Resources and Environmental Sciences (Accuracy 2002) (Melbourne: Accuracy 2002), pp. 300-309.
JIANG, B., 1996. Fuzzy Overlay Analysis and Visualization in Geographic Information Systems. PhD Thesis, (Utrecht: University of Utrecht).
MOWRER, H.T. and CONGALTON, R.G., 2000. Quantifying Spatial Uncertainty in Natural Resources: Theory and Application for GIS and Remote Sensing. (Chelsea, MI: Ann Arbor Press).
NIBLACK, W., 1986. An Introduction to Digital Image Processing. Prentice/Hall International.
UNIT GEO SOFTWARE DEVELOPMENT, 2001. ILWIS 3.0 Academic user's guide. (Enschede:ITC).
