Tomislav Hengl and Dennis J.J. Walvoort and Allan Brown.
Pixel (PM) and Colour Mixture (CM): GIS Techniques for Visualisation of Fuzziness and Uncertainty of Natural Resource Inventories.
In Proceedings of the 5th International Symposium on Spatial Accuracy Assesment in Natural Resources and Environmental Sciences (Accuracy 2002), pp. 300--309, 2002.


Links:

Abstract:

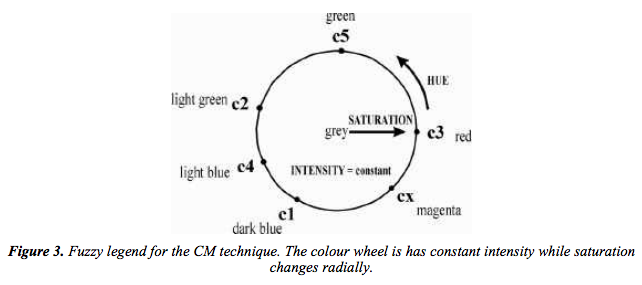

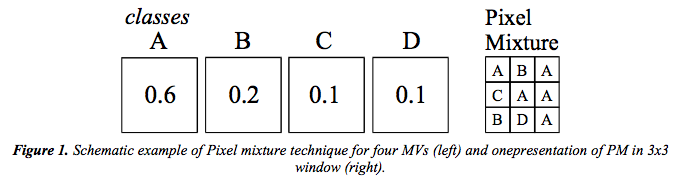

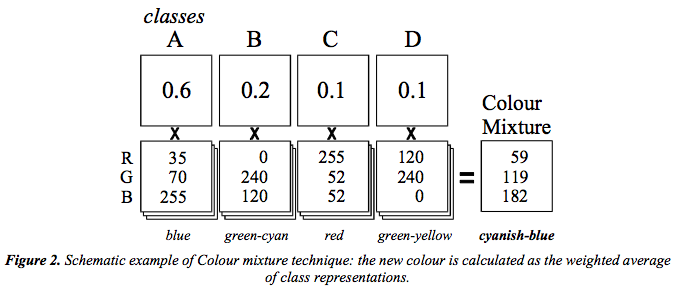

Natural resource inventories are more and more based on quantitative spatial methods. The discrete classes of vegetation, soil, land cover etc. can be quantified by using membership maps rather than only crisp delineations. GIS methods to visually explore fuzziness and uncertainty of the prediction maps are clearly needed. The paper presents two relatively new techniques for visualisation of multiple membership maps and uncertainty of spatial prediction methods: Pixel Mixture (PM) and Colour Mixture (CM). The PM assigns classes to sub-pixels relatively to the membership value, while CM calculates average colour taking the memberships as weights. The PM technique appears to be more simple, "user-friendly" and easier to interpret. The CM technique requires a special fuzzy legend that also reflects taxonomic relations and can be therefore considered a double-continuous approach to mapping. The derived saturation of the map calculated using the CM technique gives us insight into the spatial and taxonomic confusion of our map. Both PM and CM can be both applied to visualize the confusion index or relative error together with the maps of estimates. In this case we used brightness correction and white pixels to include the relative uncertainty and confusion. These techniques will be further on developed to produce operational maps to be used in decision-making.

Bibtex:

@InProceedings{  hengl:2002:PACM,
  author = 	 {Tomislav Hengl and Dennis J.J. Walvoort and Allan Brown},
  title = 	 {Pixel (PM) and Colour Mixture (CM): GIS Techniques
                  for Visualisation of Fuzziness and Uncertainty of
                  Natural Resource Inventories},
  booktitle =    {Proceedings of the 5th International Symposium on
                  Spatial Accuracy Assesment in Natural Resources and
                  Environmental Sciences (Accuracy 2002)},
  pages = 	 {300--309},
  year = 	 {2002},
}

Images:

References:

Brown, A. and Feringa, W., 1999. A colour handbook for GIS users and cartographers.
International Institute for Geo-information science and Earth Observation, Enschede,
pp. 93.
Brown, D.G., 1998. "Mapping historical forest types in Baraga County Michigan", USA as
fuzzy sets. Plant Ecology, 134(1): 97-111.
Burrough, P.A., 1993. "Soil variability: a late 20th century view". Soils and fertilizers, 56
(May): 529-562.
Burrough, P.A., Gaans, P.F.M. and van Hootsmans, R., 1997. "Continuous classification in
soil survey: spatial correlation, confusion and boundaries". Geoderma, 77 (Fuzzy sets in
Soil systems): 115-135.
Burrough, P.A. and McDonnell, R.A., 1998. Principles of geographical information systems.
Oxford University Press, Oxford, 327 pp.
Burrough, P.A., van Gaans, P.F.M. and MacMillan, R.A., 2000. "High-resolution landform
classification using fuzzy k-means". Fuzzy Sets and Systems, 113: 37-52.
De Gruijter, J.J. and Boogaard, H.L., 2001. Fuzzy sets voor zachte klassegrenzen. Toepassing
op het landevaluatiesysteem BODEGA. 346, ALTERRA, Wageningen.
De Gruijter, J.J. and McBratney, A.B., 1988. "A modified fuzzy k-means method for
predictive classification". In: H.H. Bock (Editor), Classification and Related Methods of
Data Analysis. Elsevier Science Publishers B.V., pp. 97-105.
De Gruijter, J.J. et al., 1997. "Continuous soil maps - a fuzzy set approach to bridge the gap
between aggregation levels of process and distribution models". Geoderma (Fuzzy sets
in soil science), 77(2-4): 169-195.
Fisher, P.F., 1993. "Visualizing uncertainty in soil maps by animation". Cartographica, 30(2-
3): 20-27.
Hansen, M.C. and Reed, B., 2000. "A comparison of the IGBP DISCover and University of
Maryland 1 km global land cover products". International Journal of Remote Sensing,
21(6-7): 1365-1373.
Hootsmans, R.M., 1996. Fuzzy sets and series analysis for visual decision support in spatial
data exploration. PhD Thesis, University of Utrecht, Utrecht, 167 pp.
Irvin, B.J., Ventura, S.J. and Slater, B.K., 1997. "Fuzzy and isodata classification of landform
elements from digital terrain data in Pleasant Valley, Winsconsin". Geoderma, 77: 137-
154.
Jiang, B., 1996. Fuzzy Overlay Analysis and Visualization in Geographic Information
Systems. PhD Thesis, University of Utrecht, Utrecht, 167 pp.
Jiang, B., Brown, A. and Ormeling, F., 1995. "Visualisation of uncertainty with fuzzy color
system", Cartography crossing borders: 17th ICA Conference, Barcelona, pp. 507.
MacEachren, A.M. and Kraak, M.J., 1997. "Exploratory cartographic visualization: advancing
the agenda". Computers & Geosciences, 23(4): 335-344.
McBratney, A.B. and Whelan, B.M., 1995. "Continuous models of soil variation for
continuous soil management", In: Site specific management for agricultural systems.
Proc. conference, ASA-CSSA-SSSA, Minneapolis, pp. 325-338.
Unit Geo Software Development, 2001. ILWIS 3.0 Academic user's guide, ITC, Enschede,
520 pp. http://www.itc.nl/ilwis/.
Walvoort, D.J.J. and De Gruijter, J.J., 2001. "Compositional Kriging: A Spatial Interpolation
Method for Compositional Data". Mathematical Geology, 33(8): 951-966.
