Richard A. Becker and William S. Cleveland.
Brushing Scatterplots.
In Technometrics, vol. 29, no. 2, pp. 127--142, 1987.

Links:

Abstract:

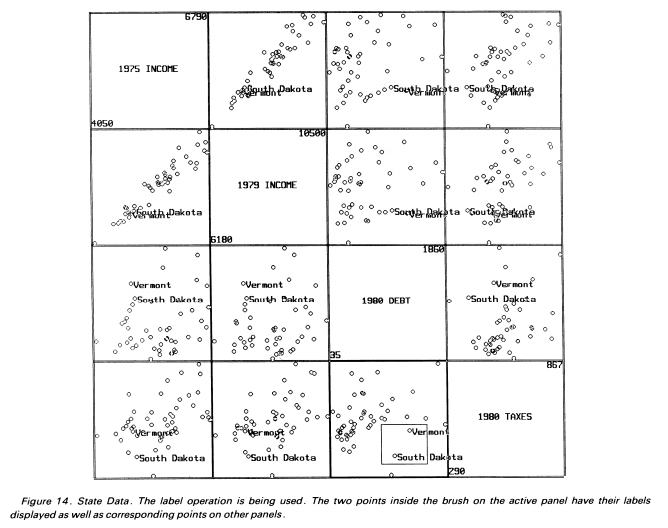

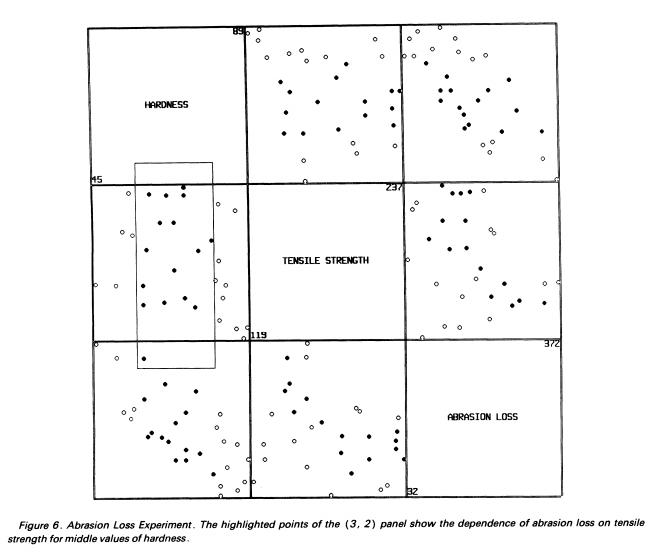

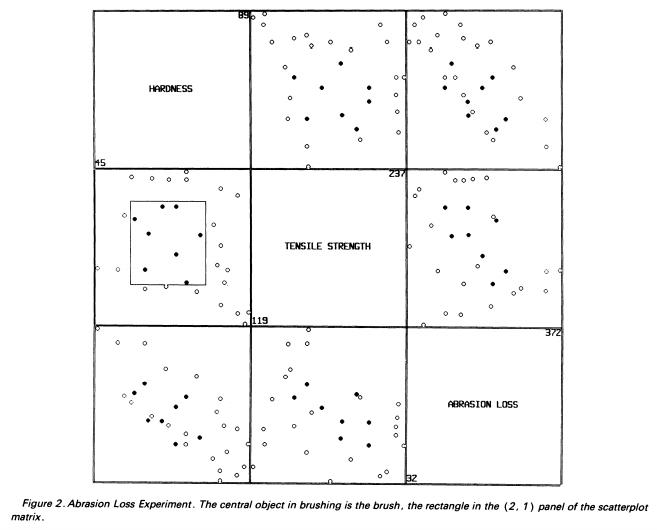

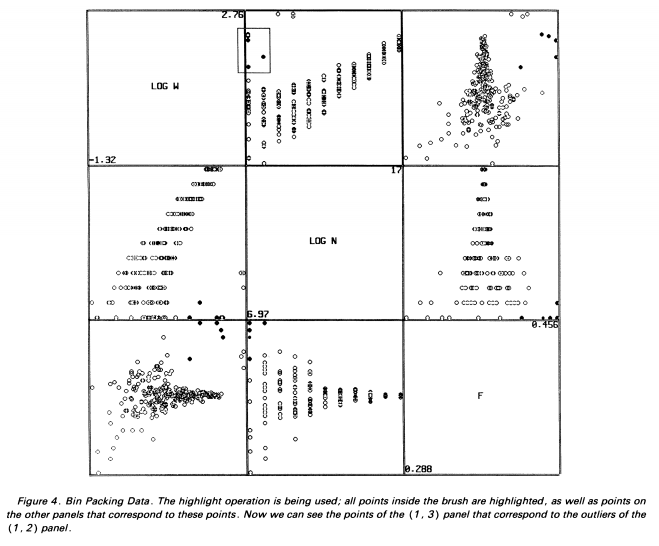

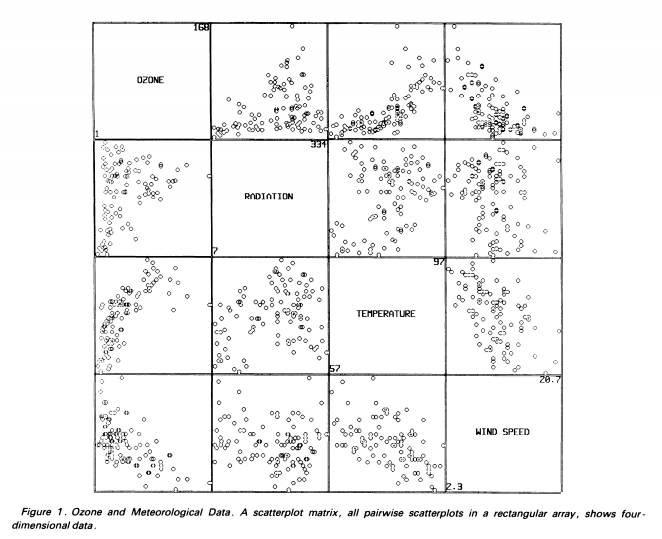

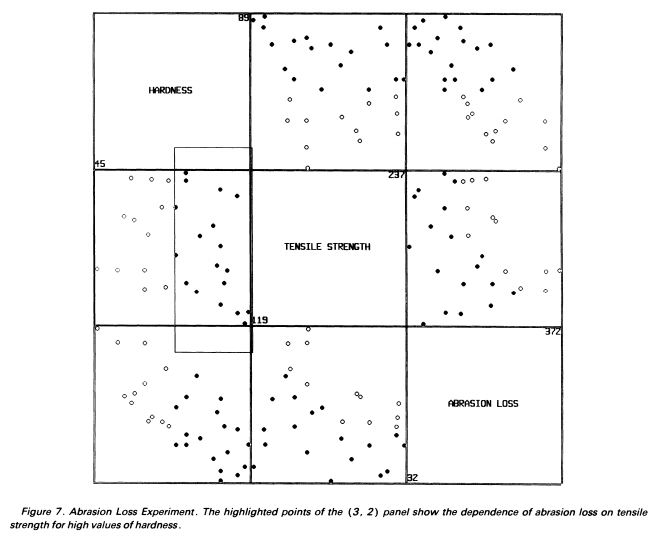

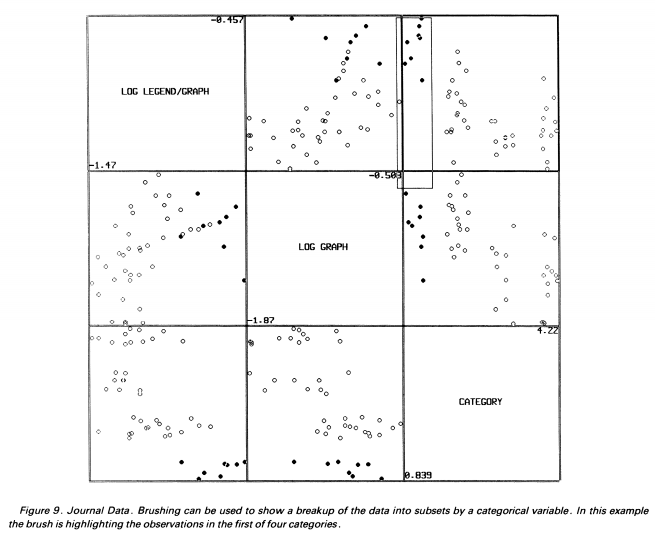

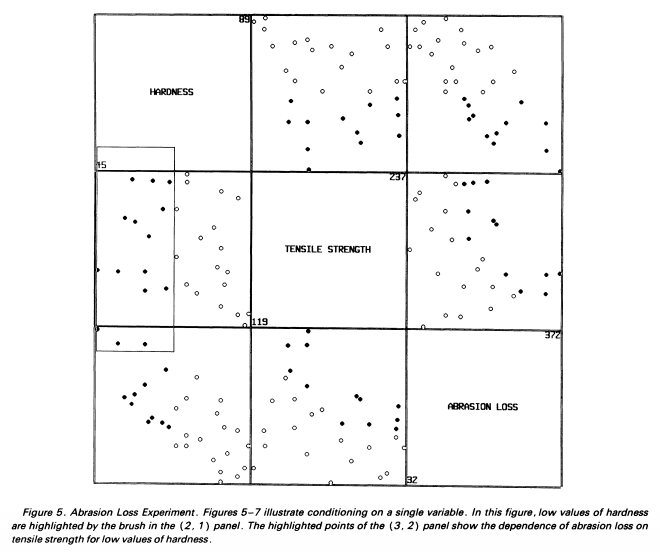

A dynamic graphical method is one in which a data analyst interacts in real time with a data display on a computer graphics terminal. Using a screen input device such as a mouse, the analyst can specify, in a visual way, points or regions on the display and cause aspects of the display to change nearly instantaneously. Brushing is a collection of dynamic methods for viewing multidimensional data. It is very effective when used on a scatterplot matrix, a rectangular array of all pairwise scatterplots of the variables. Four brushing operations- highlight, shadow highlight, delete, and label-are carried out by moving a mouse-controlled rectangle, called the brush, over one of the scatterplots. The effect of an operation appears simultaneously on all scatterplots. Three paint modes-transient, lasting, and undo-and the ability to change the shape of the brush allow the analyst to specify collections of points on which the operations are carried out. Brushing can be used in various ways or on certain types of data; these usages are called brush techniques and include the following: single-point and cluster linking, conditioning on a single variable, conditioning on two variables, subsetting with categorical variables, and stationarity probing of a time serie

Bibtex:

@Article{        becker:1987:BS,
  author = 	 {Richard A. Becker and William S. Cleveland},
  title = 	 {Brushing Scatterplots},
  journal = 	 {Technometrics},
  year = 	 {1987},
  volume = 	 {29},
  number = 	 {2},
  pages = 	 {127--142},
  month = 	 {May},
}

Images:

References:

Anderson, E. (1935), "The Irises of the Gaspe Peninsula," Bulletin of the American Iris Society, 59, 2-5.
Anscombe, F. S., and Tukey, J. W. (1963), "The Examination and Analysis of Residuals," Technometrics, 5, 141-160.
Becker, R. A., and Chambers, J. M. (1984), S: An Interactive Environment for Data Analysis and Graphics, Monterey, CA: Wadsworth/Brooks Cole.
Becker, R. A., and Cleveland, W. S. (1984), "Brushing a Scatterplot Matrix: High-Interaction Graphical Methods for Analyzing Multidimensional Data," technical memorandum, Murray Hill, NJ: AT&T Bell Laboratories.
Becker, R. A., Cleveland, W. S., and Weil, G. (in press), "The Use of Brushing and Rotation in Data Analysis," in Dynamic Graphics for Statistics, eds, W. S. Cleveland and M. E. McGill, Monterey, CA: Wadsworth/Brooks Cole.
Becker, R. A., Cleveland, W. S., and Wilks, A. R. (in press), "Dynamic Graphics for Data Analysis," Statistical Science.
Bentley, J. L., Johnson, D. S., Leighton, T., and McGeogh, C. Cole (1983), "An Experimental Study of Bin Packing," in Proceedings, Twenty-First Annual Allentown Conference on Communication, Control, and Computing, Urbana-Champaign, IL: University of Illinois Press, pp. 51-60.
Bruntz, S. M., Cleveland, W. S., Kleiner, B., and Warner, J. L. (1974), "The Dependence of Ambient Ozone on Solar Radiation, Wind, Temperature, and Mixing Height," in Symposium on Atmospheric Diffusion and Air Pollution, Boston: American Meteorological Society, pp. 125-128.
Chambers, J. M., Cleveland, W. S., Kleiner, B., and Tukey, P. A. (1983), Graphical Methods for Data Analysis, Monterey, CA: Wadsworth/Brooks Cole.
Cleveland, W. S. (1984), "Graphs in Scientific Publications," The American Statistician, 38, 261-269.
---(1985), The Elements of Graphing Data, Monterey, CA: Wadsworth/Brooks Cole.
Cleveland, W. S., Devlin, S. J., and Terpenning, I. J. (1982), "The SABL Seasonal and Calendar Adjustment Procedures," in Time Series Analysis: Theory and Practice 1, ed. 0. D. Anderson, Amsterdam: North-Holland, pp. 539-564.
Davies, 0. L. (ed.) (1958), Statistical Methods in Research and Production, London: Oliver & Boyd.
Fisherkeller, M. A., Friedman, J. H., and Tukey, J. W. (1974), "PRIM9: An Interactive Multidimensional Data Display and Analysis System," in Data: Its Use, Organization, and Management, New York: Association for Computing Machinery, pp. 140-145.
Fowlkes, E. B. (1969), "User's Manual for a System for Interactive Probability Plotting on Graphic-2," technical memorandum, Murray Hill, NJ: Bell Telephone Laboratories.
(1971), "User's Manual for an On-Line Interactive System for Probability Plotting on the DDP-224 Computer," technical memorandum, Murray Hill, NJ: Bell Telephone Laboratories.
Keeling, C. D., Bacastow, R. B., and Whort, T. P. (1982), "Measurement of the Concentration of Carbon Dioxide at Mauna Loa Observatory, Hawaii," in Carbon Dioxide Review: 1982, ed. W. C. Clark, New York: Oxford University Press, pp. 377-385.
Marsaglia, G. (1968), "Random Numbers Fall Mainly in the Planes," Proceedings of the National Academy of Sciences, 61, 25-28.
McDonald, J. A. (1982), "Interactive Graphics for Data Analysis," technical report, Stanford University, Dept. of Statistics.
Newman, W. M., and Sproull, R.F. (1979), Principles of Interactive Computer Graphics, New York: McGraw-Hill.
SAS Institute, Inc. (1985), SAS User's Guide: Basics, Cary, NC: Author.
Stuetzle, W. (in press), "Plot Windows," Journal of the American Statistical Association, 82.
Tukey, P. A., and Tukey, J. W. (1981), "Graphical Display of Data Sets in 3 or More Dimensions," in Interpreting Multivariate Data, ed. V. Barnett, Chichester, U.K.: John Wiley.
Wang, C. M., and Gugel, H. W. (in press), "High-Performance Graphics for Exploring Multivariate Data," in Dynamic Graphics for Statistics, eds. W. S. Cleveland and M. E. McGill, Monterey, CA: Wadsworth/Brooks Cole.
World Almanac and Book of Facts, The (1983), New York: Newspaper Enterprise Association.
