Determination of Cropping + Quantization Parameters

The new quantizations (in the "Every 100th" and "1500-1599" slice series) looked a little dark to me, so I wanted to determine what quantization was used, as well as determine a better quantization for the purposes of generating data for Supercomputing. Also, I wanted to find a cropping that selected only the heart and lungs.

First, cropping. All the "Every 100th" data was downloaded into directory "every100th". The data was kept compressed, and NRRD headers were generated:


foreach SLC ( `echo *.raw.gz` )
  set numraw = ${SLC:r}
  set num = ${numraw:r}
  echo $num.nhdr
  unu make -h -i ./$SLC -t uchar -s 3 6144 4096 -c $numraw -e gz -o $num.nhdr
end

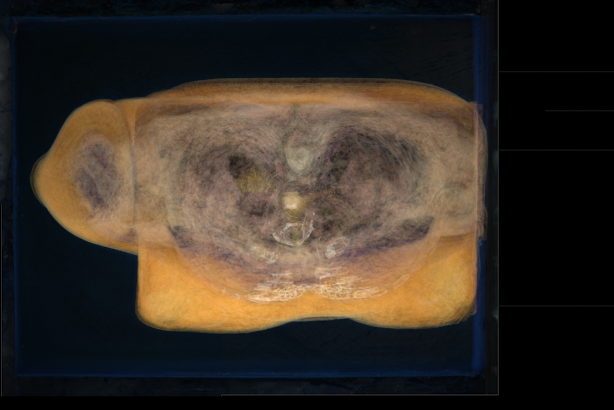

The slices were downsampled by a factor of then, then projected along Z with variance, in order to see where boundary of the lungs where:

foreach NHDR ( `echo *.nhdr` )
  echo ${NHDR:r}-small.ppm
  unu resample -i $NHDR -s = x0.1 x0.1 -k cubic:0,0.5 -o ${NHDR:r}-small.ppm
end

unu join -i ????-small.ppm -a 3 \
 | unu project -a 3 -m variance \
 | unu gamma -g 2.5 | unu quantize -b 8 -o var-small.png


Based on this, minimum (X,Y) of (1550, 950) and maximum (4499, 3099) was chosen, and then tested:


foreach NHDR ( `echo *.nhdr` )
  unu crop -min 0 1550 950 -max 2 4499 3099 -i $NHDR \
   | unu resample -s = x0.2 x0.2 -k tent \
   | unu gamma -g 1.4 -o ${NHDR:r}-test.ppm
end

unu join -i *-test.ppm -a 3 \
 | unu pad -min 0 -5 -5 0 -max 2 M+5 M+5 M -b pad -v 0 \
 | unu reshape -s 3 600 440 5 6 \
 | unu permute -p 0 1 3 2 4 \
 | unu reshape -s 3 3000 2640 \
 | unu resample -s 3 x0.25 x0.25 -o crop-test.png

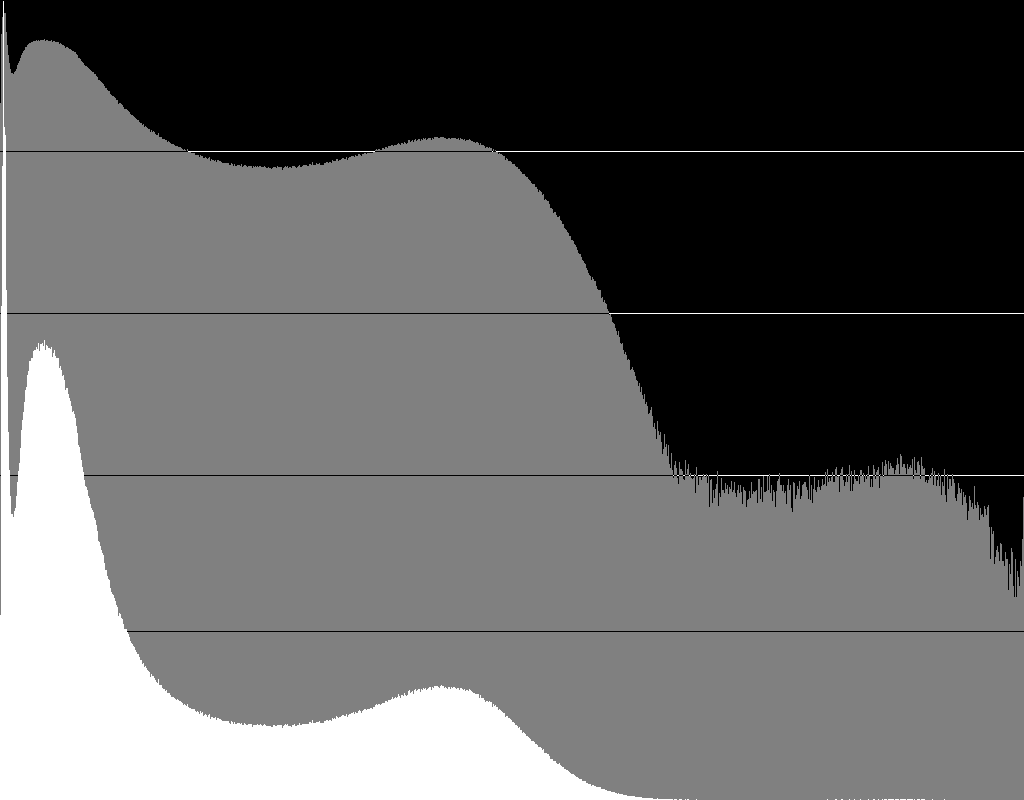

Now, quantization. I used the 16-bit slices to experiment with different parameters to adjust the values prior to quantization. First, NRRD headers were generated for all the 48bit slices, and then these were cropped according to the cropping parameters determined above, and then volumes of red, green, and blue values were generated in order to produce histograms of the color components.


foreach N ( 24 25 26 27 28 29 30 31 32 33 34 35 )
  echo ${N}00.48.nhdr
  unu make -h -i ./${N}00.48.raw.gz -t ushort -s 3 6144 4096 \
    -e gz -en big -c ${N}00.48 -o ${N}00.48.nhdr
  unu crop -min 0 1550 950 -max 2 4499 3099 -i ${N}00.48.nhdr \
    -o ${N}00-crop.nrrd
  unu resample -i ${N}00-crop.nrrd -s = x0.35 x0.35 -k tent \
    -o ${N}00-small.nrrd
end
unu join -i ??00-small.nrrd -a 3 -o small.nrrd
unu dice -i small.nrrd -a 0 -o small-C
foreach C ( 0 1 2 )
  echo small-C${C}-histo.png

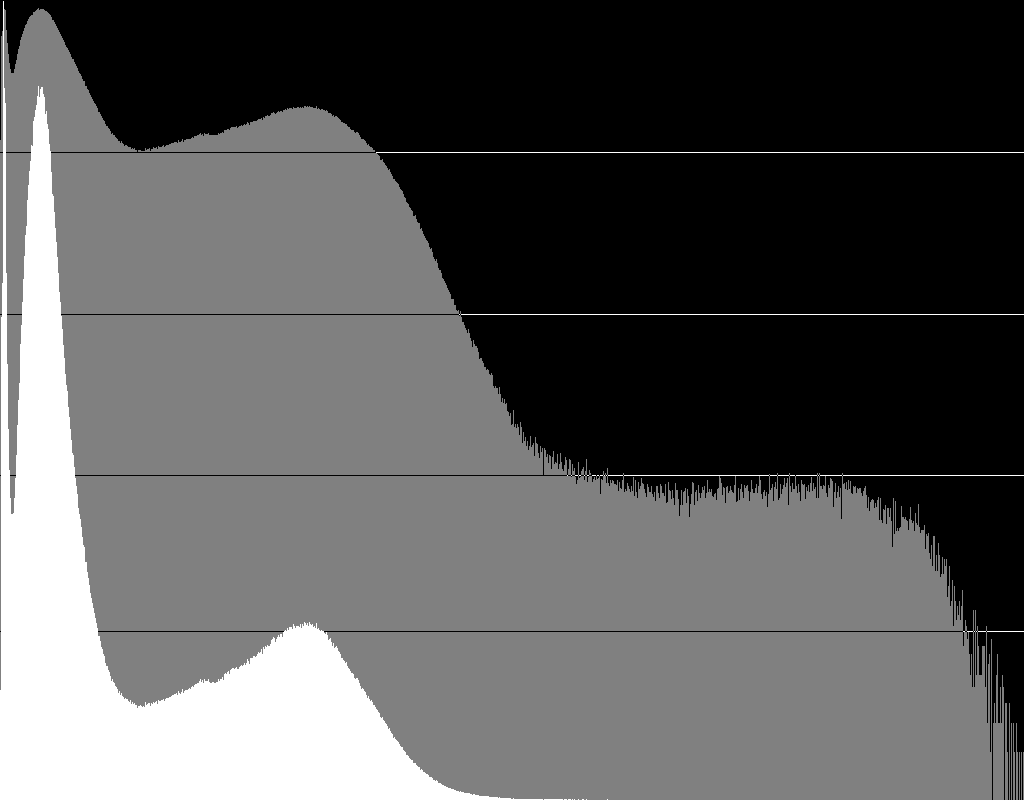

  unu histo -i small-C${C}.nrrd -min 160 -max 65540 -b 1024 \
   | unu dhisto -h 800 -o small-C${C}-histo.png
  unu resample -i small-C${C}-histo.png -k tent -s x0.2 x0.2 \
    -o small-C${C}-histo-th.png
end

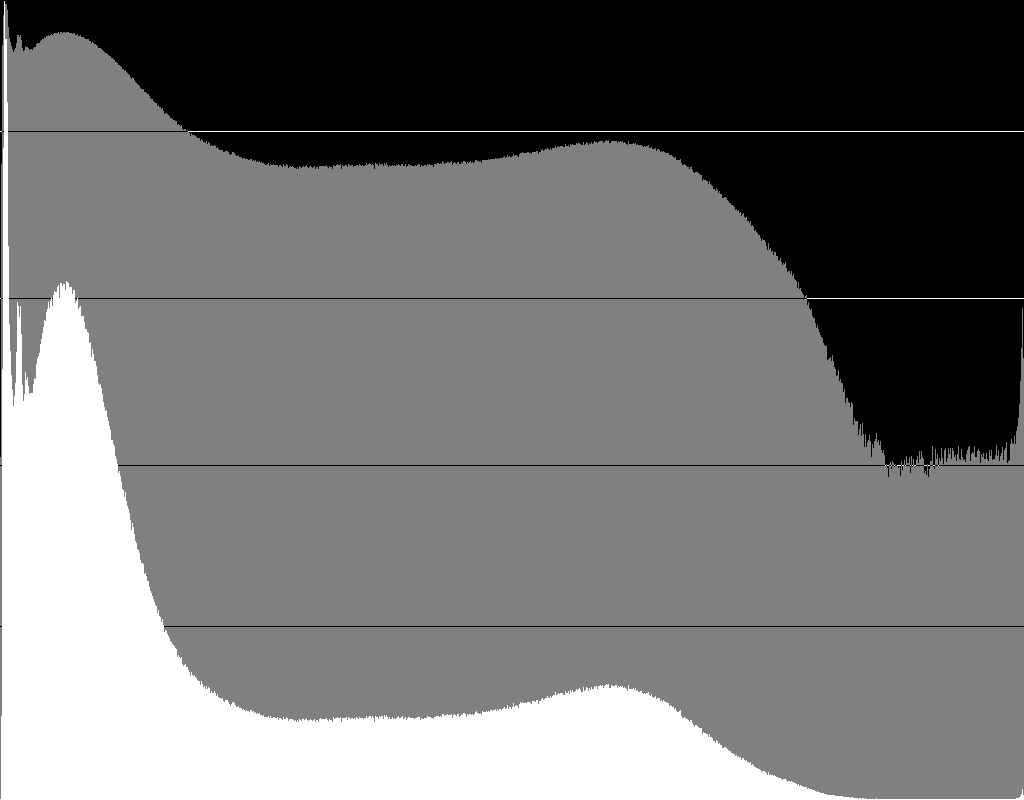

small-C0-histo-th.png small-C1-histo-th.png small-C2-histo-th.png

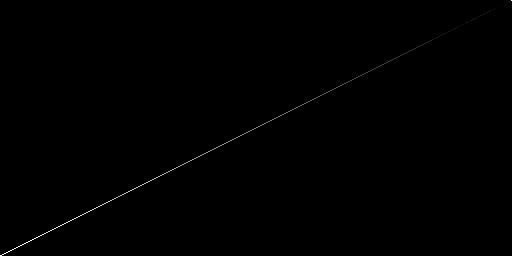

At this point I wanted to visualize the mapping used to generate the 8-bit images made available so far. In a seperate "inspect" directory:


foreach NUM ( 2400 3200 2900 3500 )
  echo $NUM
  unu jhisto -i ../48bit/$NUM.48.nhdr ../every100th/$NUM.nhdr \
     -b 512 256 -t int -o $NUM-RGB-jh.nrrd
  unu gamma -i $NUM-RGB-jh.nrrd -g 5 \
   | unu heq -b 3000 -s 2 \
   | unu flip -a 1 \
   | unu quantize -b 8 -o $NUM-RGB-jh.png
  end
end

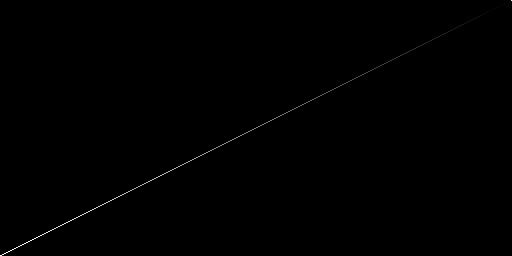

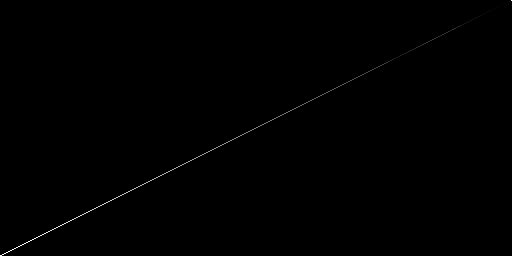

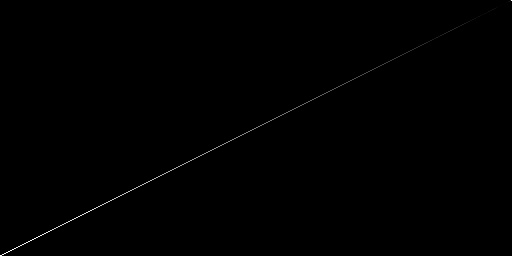

As can be seen by looking at these joint histograms, quantization to 8-bits was linear in all three channels. The same was true for the slices in the "1500-1599" series.

After much experimentation, I determined the following steps which worked well to transform the 16-bit RGB values to 8-bit values. The steps are a little bizarre (very non-linear), but it seems to work on the available 48-bit slices. Basically, it increases saturation of colors away from the color of fat, and then applies a RGB-component-wise gamma. Boosting saturation was effective in increasing the color contrast between the different tissues, and between the synthetic yellow, green, and blue colors. However, this is not an operation that can be done with NRRD command-line tools, so I made a stand-alone executable to do this. Here is the source, as well as statically-linked pre-compiled versions for darwin, linux, and irix6 (64-bit).

This tests the makeHLI program on the slices that we have 48-bit data for:

foreach N ( 24 25 26 27 28 29 30 31 32 33 34 35 )
  echo ${N}00-hl.png
  gzcat ${N}00.48.raw.gz | ./makeHLI - ${N}00-hl.png
  unu resample -i ${N}00-hl.png -s = x0.4 x0.4 -k cubic:0,0.5 \
    -o ${N}00-hl-small.png &
end

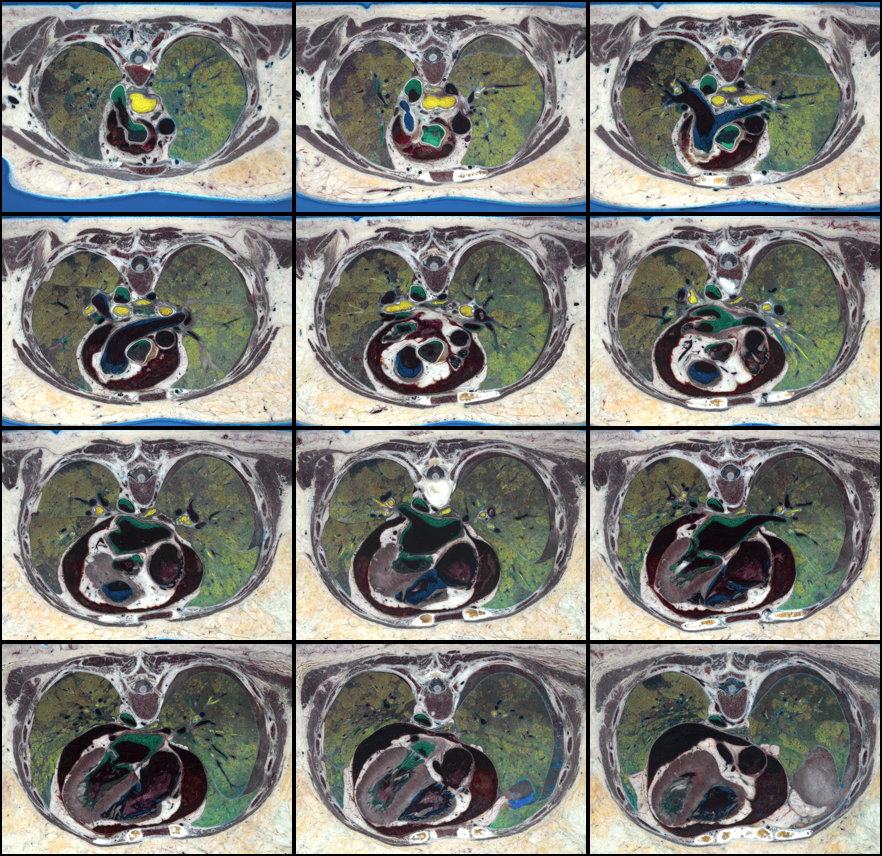

unu join -i ??00-hl-small.png -a 3 \
 | unu resample -k cubic:0,0.5 -s = 290 210 = \
 | unu pad -min 0 -2 -2 0 -max 2 M+2 M+2 M -b pad -v 0 \
 | unu reshape -s 3 294 214 3 4 \
 | unu permute -p 0 1 3 2 4 \
 | unu reshape -s 3 882 856 -o hl-test.png
