Bjorn Zehner and Norihiro Watanabe and Olaf Kolditz.
"Visualization of Gridded Scalar Data with Uncertainty in Geosciences".
In Computers & Geosciences, vol. 36,no. 10, pp. 1268-1275, 2010.

Links:

Abstract:

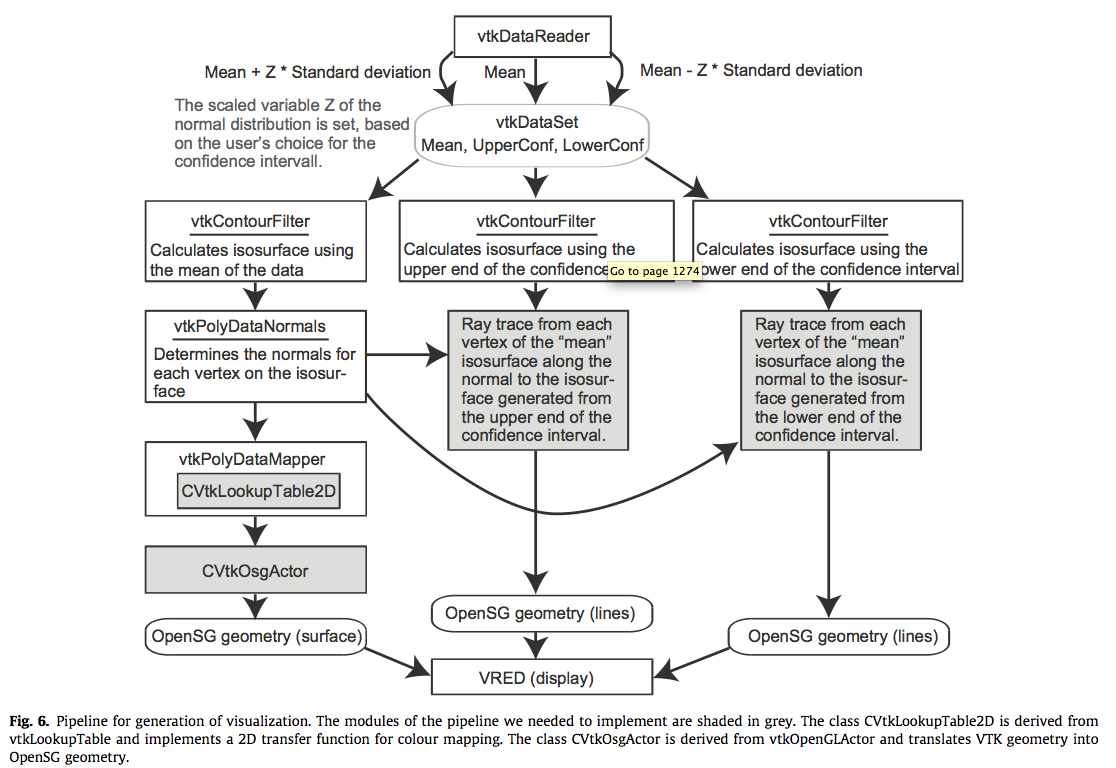

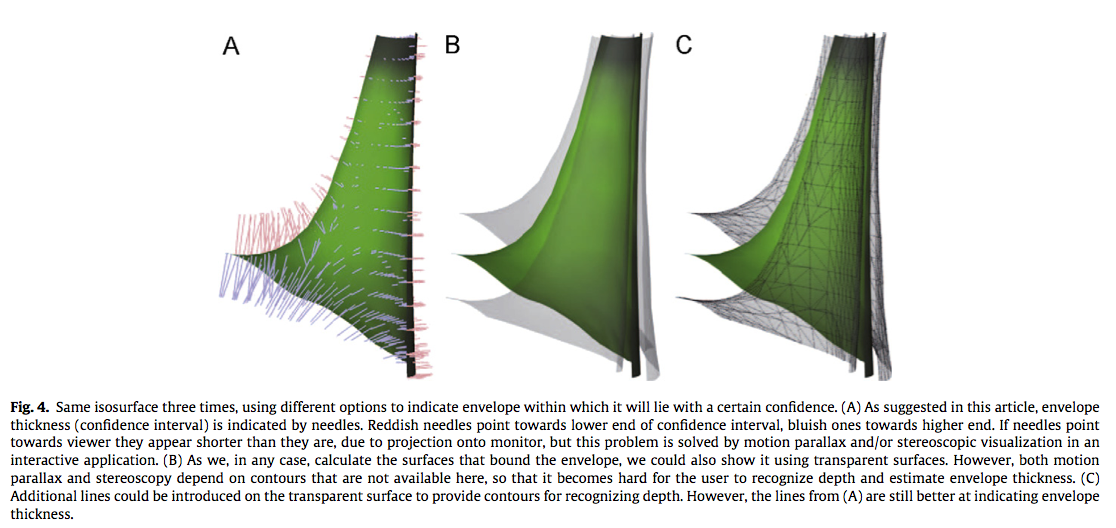

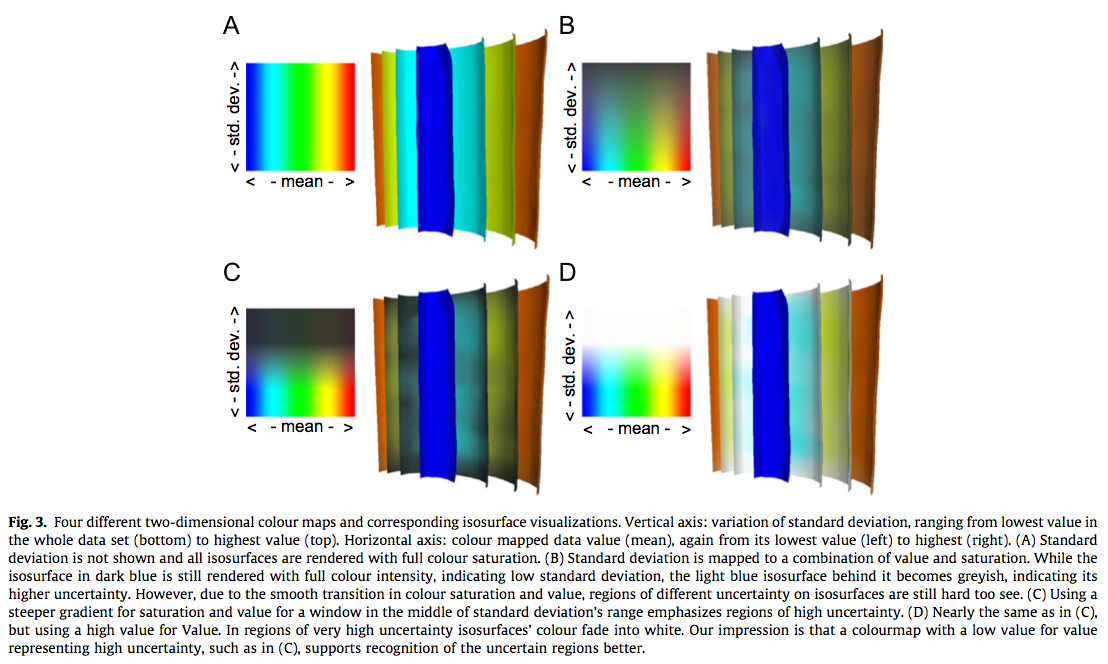

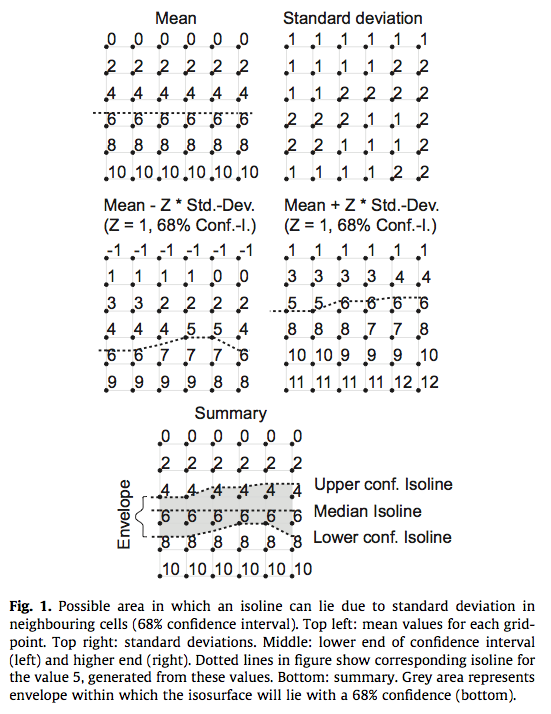

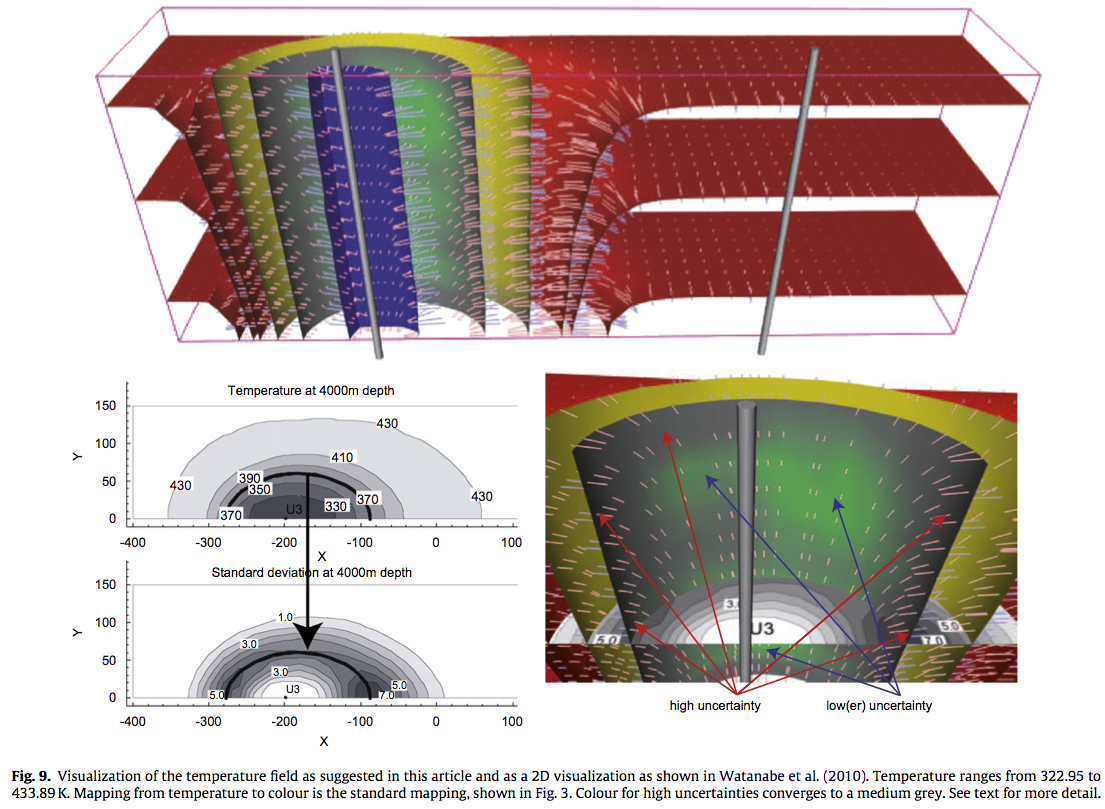

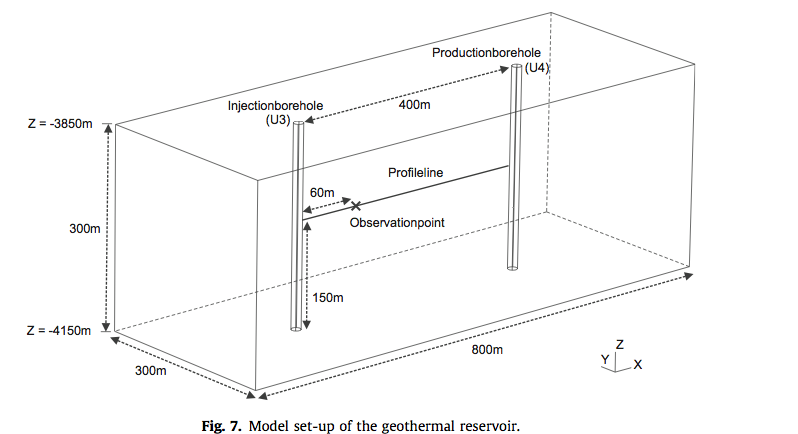

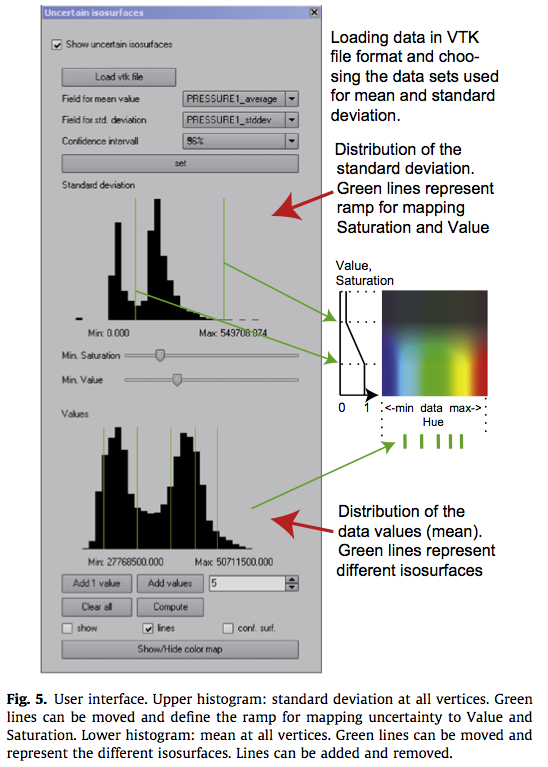

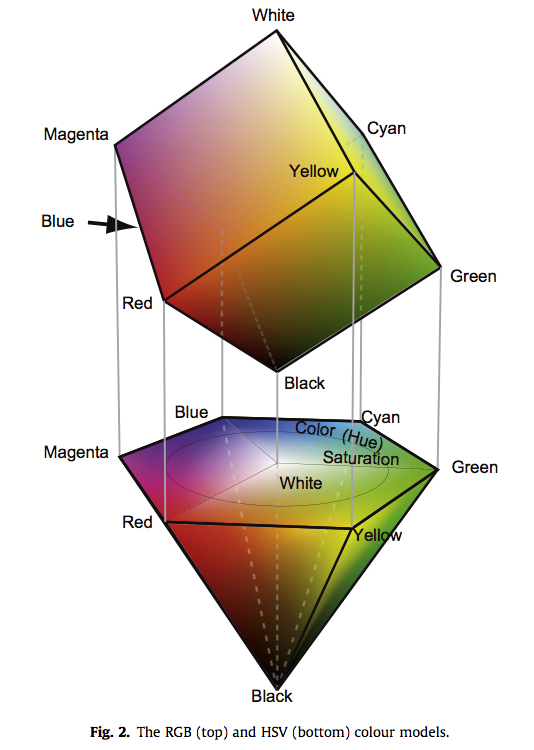

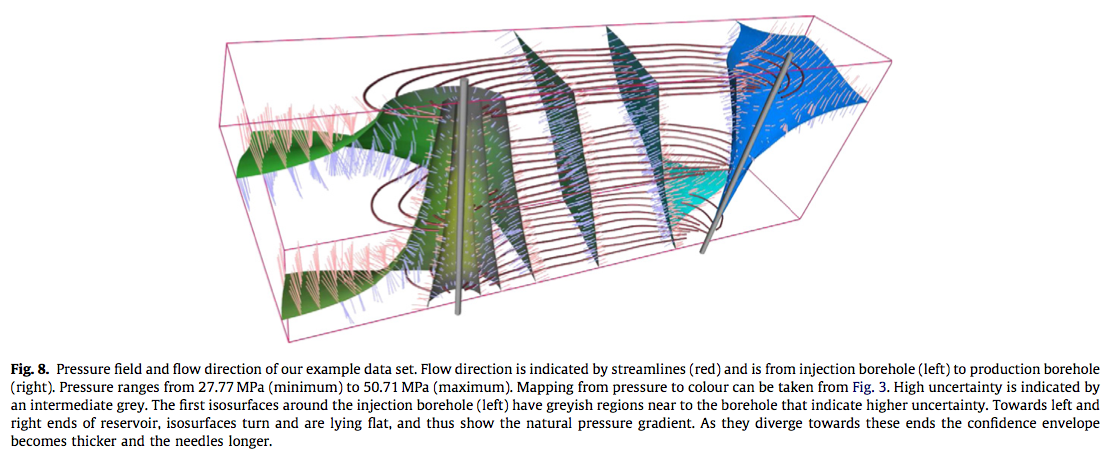

Characterization of the earth's subsurface involves the construction of 3D models from sparse data and so leads to simulation results that involve some degree of uncertainty. This uncertainty is often neglected in the subsequent visualization, due to the fact that no established methods or available software exist. We describe a visualization method to render scalar fields with a probability density function at each data point. We render these data as isosurfaces and make use of a colour scheme, which intuitively gives the viewer an idea of which parts of the surface are more reliable than others. We further show how to extract an envelope that indicates within which volume the isosurface will lie with a certain confidence, and augment the isosurfaces with additional geometry in order to show this information. The resulting visualization is easy and intuitive to understand and is suitable for rendering multiple distinguishable isosurfaces at a time. It can moreover be easily used together with other visualized objects, such as the geological context. Finally we show how we have integrated this into a visualization pipeline that is based on the Visualization Toolkit (VTK) and the open source scenegraph OpenSG, allowing us to render the results on a desktop and in different kinds of virtual environments.

Summary:

Keywords:

Visualisation; 3D; Uncertainty; Scalar fields; Monte carlo simulation

Techniques:

Bibtex:

@Article{        zehner:2010:UGSU,
  author = 	 {Bj{\"o}rn Zehner and Norihiro Watanabe and Olaf Kolditz},
  title = 	 {Visualization of Gridded Scalar Data with Uncertainty in Geosciences},
  journal = 	 {Computers & Geosciences},
  year = 	 {2010},
  volume = 	 {36},
  number = 	 {10},
  pages = 	 {1268-1275},
}

Images:

References:


Deutsch, C.V., 2002. Geostatistical Reservoir Modeling. Oxford University Press, Oxford, UK 376pp.
Djurcilov, S., Kim, K., Lermusiaux, P., Pang, A., 2002. Visualizing scalar volumetric data with uncertainty. Computers & Graphics 26 (2), 239-248.
Foley, J.D., van Dam, A., Feiner, S.K., Hughes, J.F., 1996. Computer Graphics, Principles and Practice. Addison-Wesley, Boston, USA 1173pp.
Grigoryan, G., Rheingans, P., 2004. Point-based probabilistic surfaces to show surface uncertainty. IEEE Transactions on Visualization and Computer Graphics 10 (5), 564-573.
Hengl, T., 2003. Visualisation of uncertainty using the HSI colour model: computations with colours. In: Proceedings of Seventh International Con- ference on GeoComputation (on CD-ROM), Southampton, UK, 8pp, /http:// www.geocomputation.org/2003/Papers/Hengl_Paper.pdfS (accessed 15.02.10).
Johnson, C.R., Sanderson, A.R., 2003. A next step: visualizing errors and uncertainty. IEEE Computer Graphics and Applications 23 (5), 6-10.
Lengyel, E., 2004. Mathematics for 3D Game Programming and Computer Graphics, second ed. Charles River Media Inc., Hingham, MA 551pp.
Lodha, S.K., Sheehan, B., Pang, A.T., Wittenbring, C.M., 1996. Visualizing geometric uncertainty of surface interpolants. In: Proceedings of Conference on Graphics Interface '96, Toronto, Canada, pp. 238-245.
Newman, T.S., Lee, W., 2004. On visualizing uncertainty in volumetric data: techniques and their evaluation. Journal of Visual Languages and Computing 15, 463-491.
Osorio, R.S.A., Brodlie, K.W., 2008. Contouring with uncertainty. In: Lim, I.S., Tang, W. (Eds.), Proceedings of Theory and Practice of Computer Graphics 2008 (TPCG08), Manchester, UK, pp. 59-66.
Pang, A.T., Wittenbrink, C.M., Lodha, S.K., 1997. Approaches to uncertainty visualization. The Visual Computer 13, 370-390.
Rajlich, P., 2009. vtkActorToPF, web page on implementation of the vtkActorToPf class, /http://brighton.ncsa.uiuc.edu/~prajlich/vtkActorToPF/S (accessed 15.02.10).
Reiners, D., Voss, G., Behr, J., 2002. OpenSG: basic concepts. In: Proceedings of OpenSG Symposium 2002, Darmstadt, Germany, 7pp, /http://publica.fraunho fer.de/starweb/servlet.starweb?path=pub.web&search=N-9605S (accessed 15.02..10).
Rhodes, P.J., Laramee, R.S., Bergeron, R.D., Sparr, T.M., 2003. Uncertainty visualiza- tion methods in isosurface rendering. In: Chover, M., Hagen, H., Tost, D. (Eds.), Proceedings of Eurographics 2003 Conference, Granada, Spain, pp. 83-88.
Rouhani, S., Srivastava, R.M., Desbarats, A.J., Cromer, M.V., Johnson, A.I., 1996. Geostatistics for Environmental and Geotechnical Applications. American Society for Testing and Materials (ASTM), West Conshohocken, PA, USA 300pp.
Schroeder, W., Martin, K., Lorensen, B., 1996. The Visualization Toolkit, An Object- Oriented Approach to 3D Graphics. Prentice-Hall PTR, Upper Saddle River, NJ, USA 826pp.
Smith, A.R., 1978. Colour gamut transform pairs. In: Proceedings of SIGGRAPH 1978, Atlanta, Georgia, USA, pp. 12-19.
Sterzer, P., Rees, G., 2006. Perceived size matters. Nature Neuroscience 9 (3), 302-304.
Swan, A.R.H., Sandilands, M., 1995. Introduction to Geological Data Analysis. Blackwell Science Ltd., Oxford, UK 446pp.
Watanabe, N., McDermott, C., Wang, W., Taniguchi, T., Kolditz, O., 2010. Uncertainty analysis of thermo-hydro-mechanical processes in heterogeneous porous media. Computational Mechanics 45 (4), 263-280.
