Marcel Hlawatsch and Philipp Leube and Wolfgang Nowak and Daniel Weiskopf.
Flow Radar Glyphs & Static Visualization of Unsteady Flow with Uncertainty.
In IEEE Transactions on Visualization and Computer Graphics, vol. 17, no. 12, pp. 1949--1958, 2011.

Links:

Abstract:

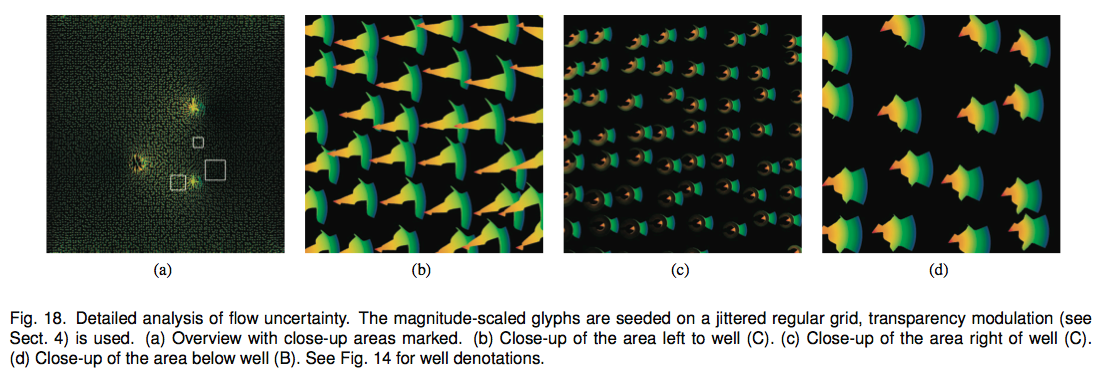

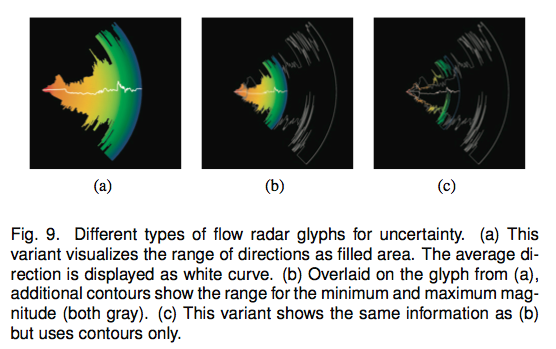

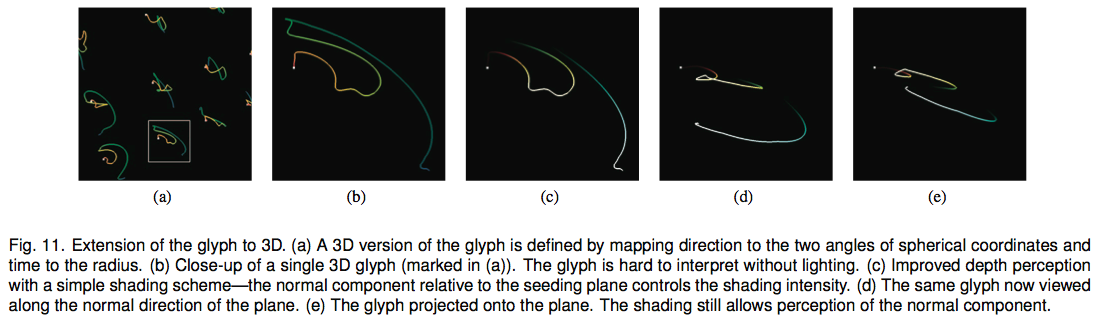

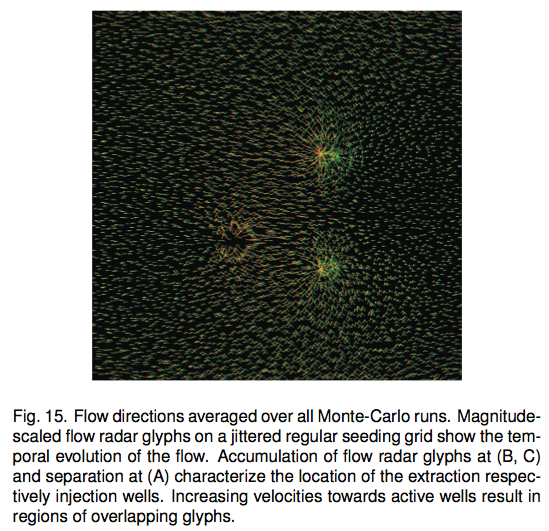

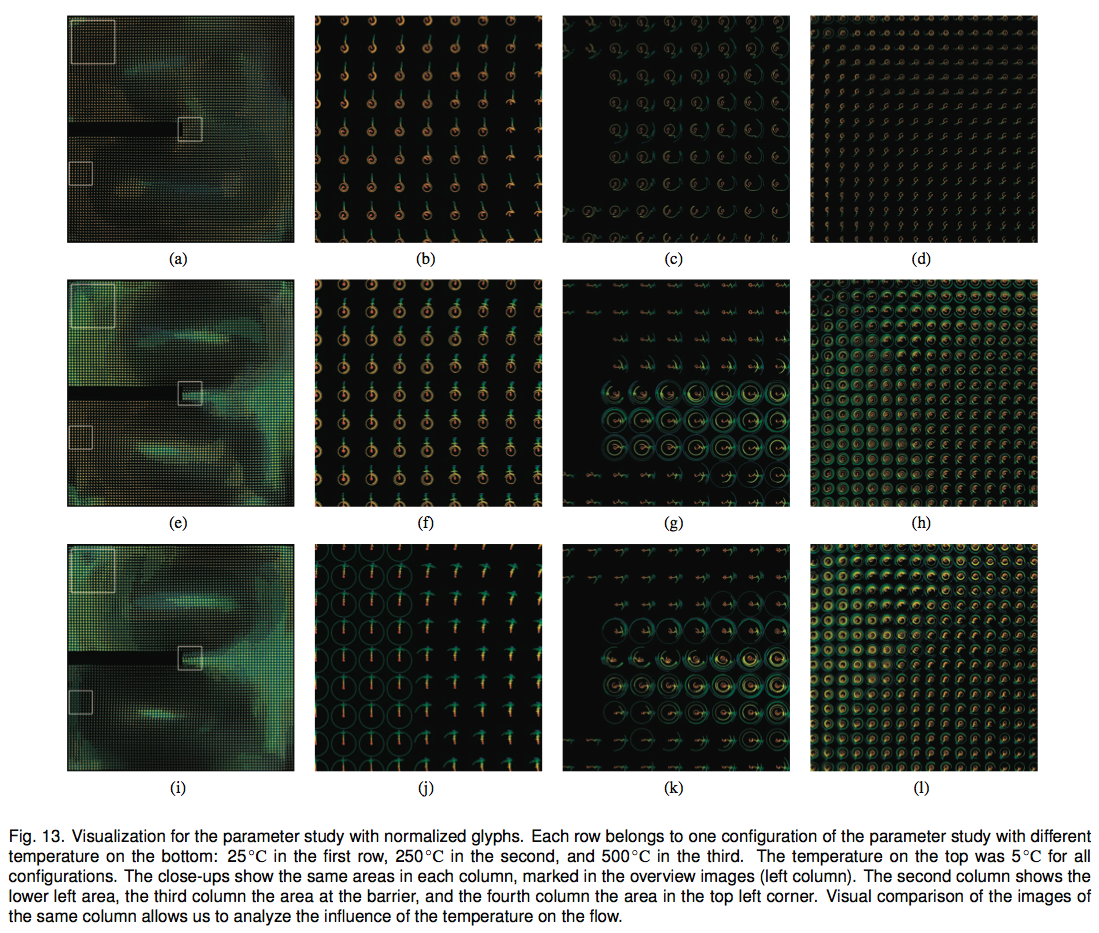

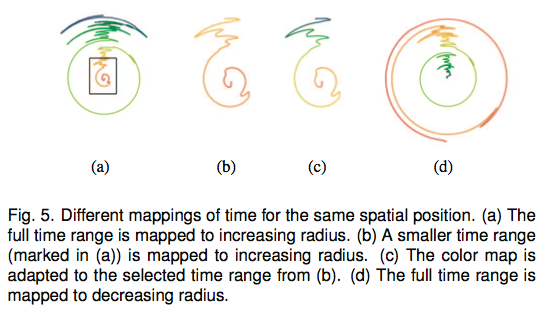

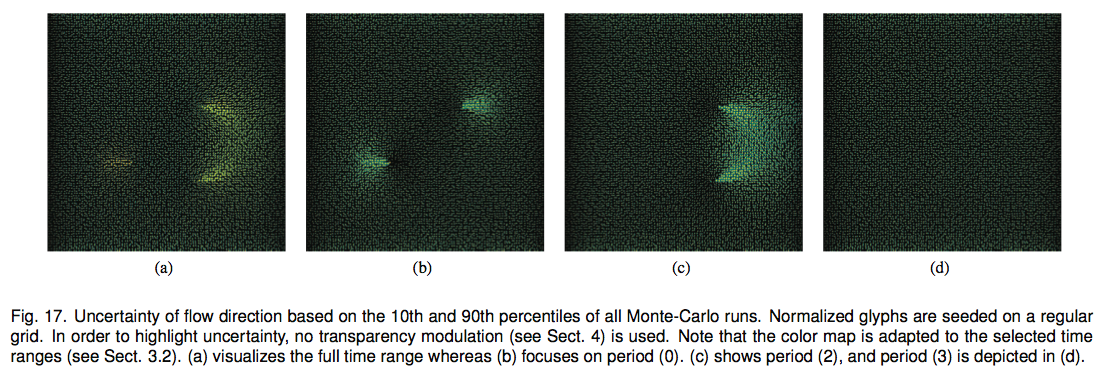

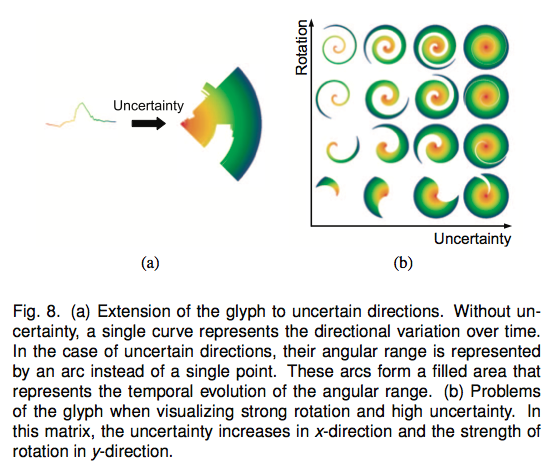

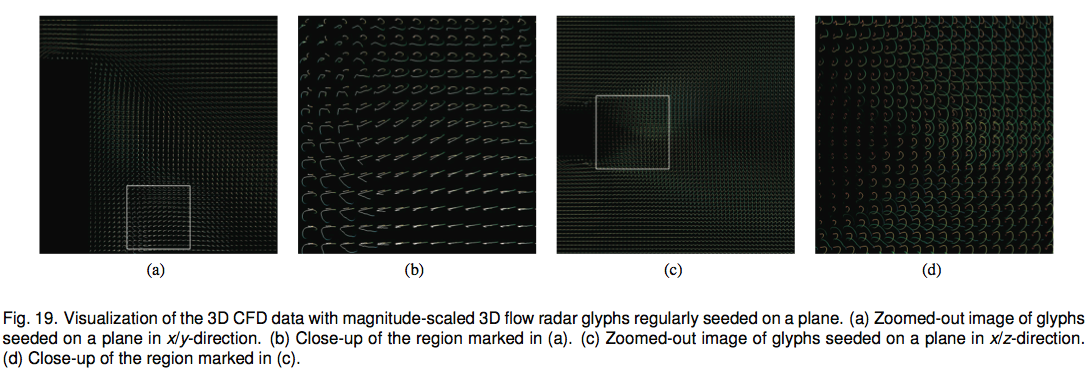

A new type of glyph is introduced to visualize unsteady flow with static images, allowing easier analysis of time-dependent phenomena compared to animated visualization. Adopting the visual metaphor of radar displays, this glyph represents flow directions by angles and time by radius in spherical coordinates. Dense seeding of flow radar glyphs on the flow domain naturally lends itself to multi-scale visualization: zoomed-out views show aggregated overviews, zooming-in enables detailed analysis of spatial and temporal characteristics. Uncertainty visualization is supported by extending the glyph to display possible ranges of flow directions. The paper focuses on 2D flow, but includes a discussion of 3D flow as well. Examples from CFD and the field of stochastic hydrogeology show that it is easy to discriminate regions of different spatiotemporal flow behavior and regions of different uncertainty variations in space and time. The examples also demonstrate that parameter studies can be analyzed because the glyph design facilitates comparative visualization. Finally, different variants of interactive GPU-accelerated implementations are discussed.

Bibtex:

@Article{        hlawatsch:2011:FRGU,
  author=        {Marcel Hlawatsch and Philipp Leube and Wolfgang
                  Nowak and Daniel Weiskopf},
  journal=       {{IEEE} Transactions on Visualization and Computer
                  Graphics},
  title=         {Flow Radar Glyphs \& Static Visualization of
                  Unsteady Flow with Uncertainty},
  year=          {2011},
  month=         {dec. },
  volume=        {17},
  number=        {12},
  pages=         {1949--1958},
}

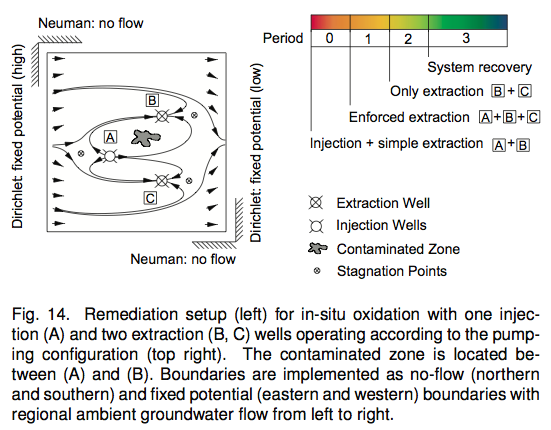

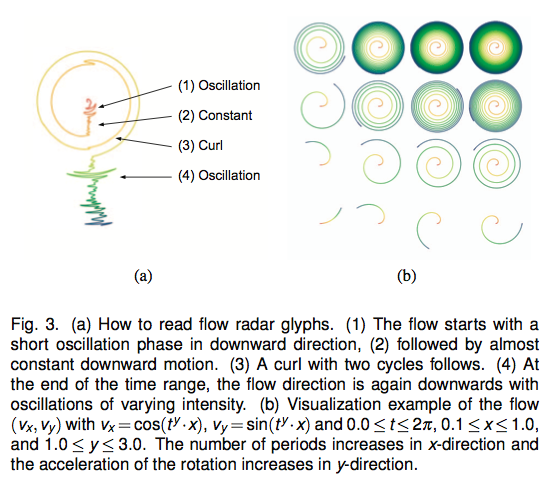

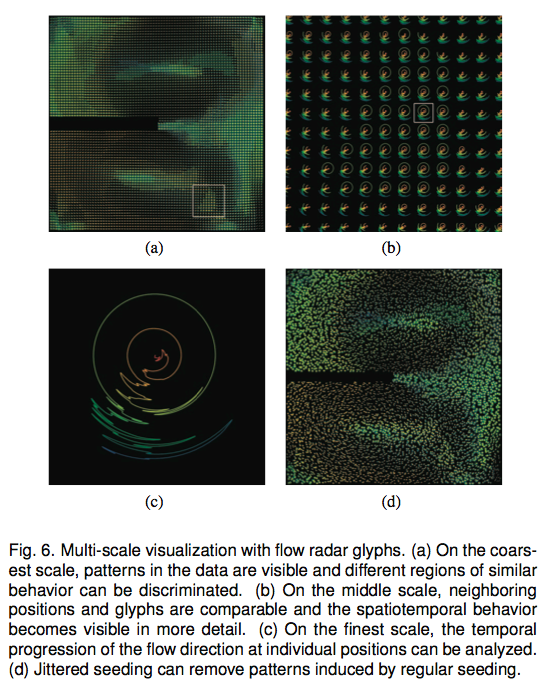

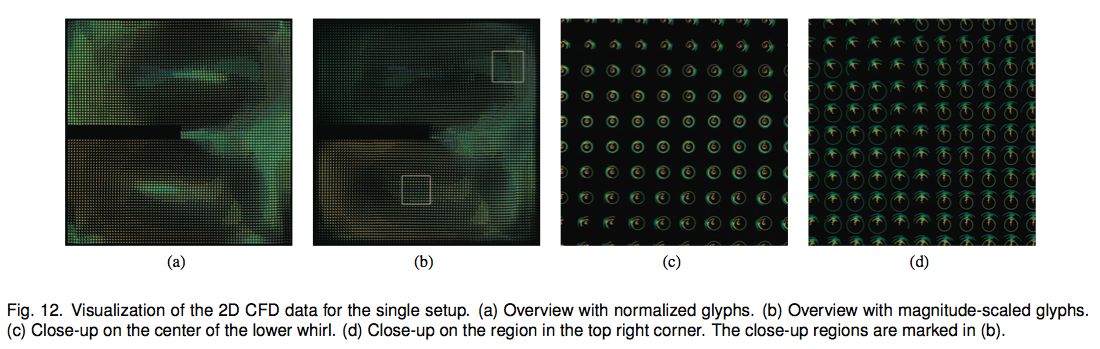

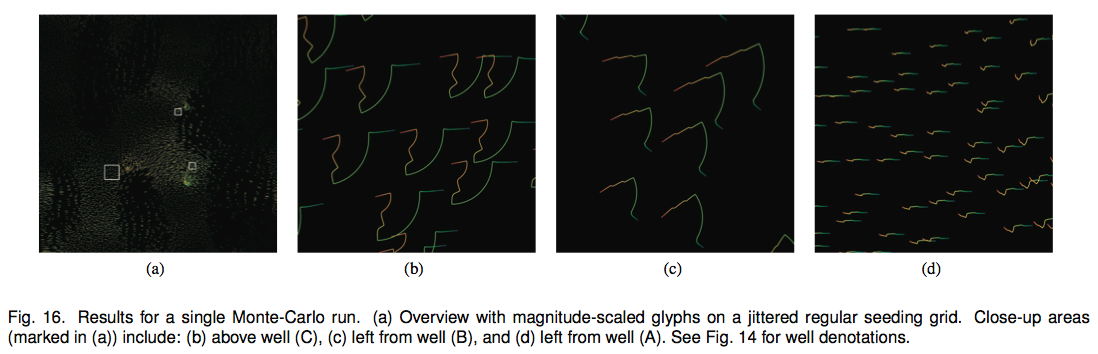

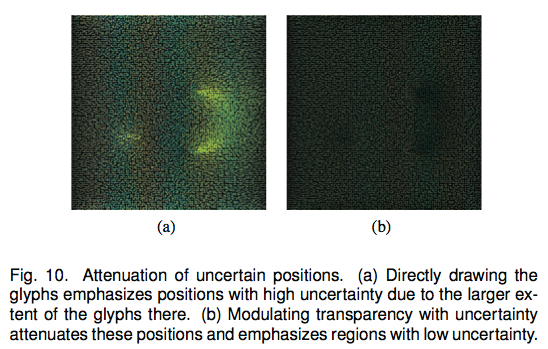

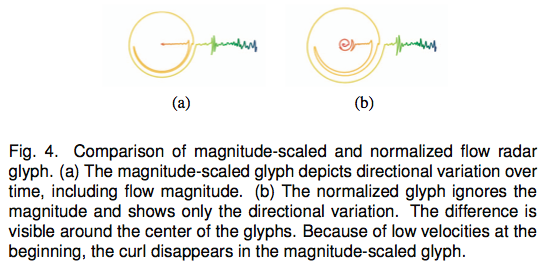

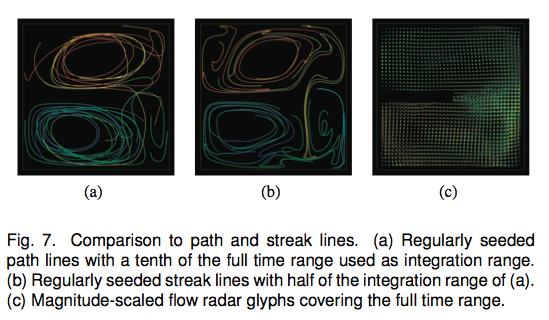

Images:

References:

[1] R. S. Allendes Osorio and K. W. Brodlie. Uncertain flow visualization using LIC. In Proceedings of EG UK Theory and Practice of Computer Graphics, pages 1-9, 2009.
[2] P.Bak,F.Mansmann,H.Janetzko,andD.Keim.Spatiotemporalanalysis of sensor logs using growth ring maps. IEEE Transactions on Visualization and Computer Graphics, 15(6):913-920, 2009.
[3] J.Bear.DynamicsofFluidsinPorousMedia.Elsevier,1972.
[4] F. H. Bertrand and P. A. Tanguy. Graphical representation of two- dimensional fluid flow by stream vectors. Communications in Applied Numerical Methods, 4(2):213-217, 1988.
[5] E.Boring and A.Pang. Directional flow visualization of vector fields.In Proceedings of IEEE Visualization 1996, pages 389-392, 1996.
[6] R. Botchen, D. Weiskopf, and T. Ertl. Texture-based visualization of uncertainty in flow fields. In Proceedings of IEEE Visualization 2005,pages 647-654, 2005.
[7] M.BurchandS.Diehl.TimeRadarTrees:Visualizingdynamiccompound digraphs. Computer Graphics Forum, 27(3):823-830, 2008.
[8] J. V. Carlis and J. A. Konstan. Interactive visualization of serial periodic data. In Proceedings of UIST 1998, pages 29-38, 1998.
[9] C. Chen. Citespace II: Detecting and visualizing emerging trends and transient patterns in scientific literature. Journal of the American Society for Information Science and Technology, 57(3):359-377, 2006.
[10] W.C.deLeeuwandJ.J.vanWijk.Aprobeforlocalflowfieldvisualization. In Proceedings of IEEE Visualization 1993, pages 39-45, 1993.
[11] D. Dovey. Vector plots for irregular grids. In Proceedings of IEEE Visualization 1995, pages 248-253, 1995.
[12] G. Draper, Y. Livnat, and R. Riesenfeld. A survey of radial methods for information visualization. IEEE Transactions on Visualization and Computer Graphics, 15(5):759-776, 2009.
[13] S. Gumhold. Splatting illuminated ellipsoids with depth correction. In Proceedings of VMV 2003, pages 245-252, 2003.
[14] S. Huling and B. Pivetz. In-Situ Chemical Oxidation. Technical report,EPA 600-R-06-072. US Environmental Protection Agency (USEPA),2006.
[15] C. Johnson. Top scientific visualization research problems. IEEE Computer Graphics and Applications, 24(4):13-17, 2004.
[16] A.JoshiandP.Rheingans.Illustration-inspiredtechniquesforvisualizing time-varying data. In Proceedings of IEEE Visualization 2005, pages 679-686, 2005.
[17] R. V. Klassen and S. J. Harrington. Shadowed hedgehogs: A technique for visualizing 2D slices of 3D vector fields. In Proceedings of IEEE Visualization 1991, pages 148-153, 1991.
[18] H. Lo ffelmann, L. Mroz, and E. Gro ller. Hierarchical streamarrows for the visualization of dynamical systems. In Proceedings of the 8th EURO- GRAPHICS Workshop on Visualization in Scientific Computing, pages 203-211, 1997.
[19] S. K. Lodha, A. Pang, R. E. Sheehan, and C. M. Wittenbrink. UFLOW: Visualizing uncertainty in fluid flow. In Proceedings of IEEE Visualiza- tion 1996, pages 249-254, 1996.
[20] M. Otto, T. Germer, H.-C. Hege, and H. Theisel. Uncertain 2D vector field topology. Computer Graphics Forum, 29(2):347-356, 2010.
[21] A. T. Pang, C. M. Wittenbrink, and S. K. Lodha. Approaches to uncer- tainty visualization. The Visual Computer, 13(8):370-390, 1997.
[22] R. Pickett and G. Grinstein. Iconographic displays for visualizing multi- dimensional data. In Proceedings of the IEEE International Conference on Systems, Man, and Cybernetics 1988, pages 514-519, 1988.
[23] Y. Rubin. Applied Stochastic Hydrogeology. Oxford University Press, 2003.
[24] T.SchultzandG.Kindlmann.Amaximumenhancinghigher-ordertensor glyph. Computer Graphics Forum, 29(3):1143-1152, 2010.
[25] C. Tominski, P. Schulze-Wollgast, and H. Schumann. 3D information visualization for time dependent data on maps. In Proceedings of the Ninth International Conference on Information Visualisation, pages 175- 181, 2005.
[26] B.Tversky,J.B.Morrison,andM.Betrancourt.Animation:canitfacili- tate? International Journal of Human-Computer Studies, 57(4):247-262, 2002.
[27] M. O. Ward. A taxonomy of glyph placement strategies for multidimen- sional data visualization. Information Visualization, 1(3-4):194-210, De- cember 2002.
[28] M. Weber, M. Alexa, and W. Mu ller. Visualizing time-series on spirals.In Proceedings of IEEE Symposium on Information Visualization 2001,pages 7-13, 2001.
[29] T. Weinkauf, H. Theisel, and O. Sorkine. Cusps of characteristic curvesand intersection-aware visualization of path and streak lines. In Proceedings of TopoInVis, 2011.
[30] C. Wittenbrink, A. Pang, and S. Lodha. Glyphs for visualizing uncertainty in vector fields. IEEE Transactions on Visualization and Computer Graphics, 2(3):266-279, 1996.
[31] J. Woodring and H.-W. Shen. Chronovolumes: a direct rendering technique for visualizing time-varying data. In Proceedings of the 2003 Eurographics/IEEE TVCG Workshop on Volume graphics, pages 27-34, 2003.
[32] J.Woodring,C.Wang,andH.-W.Shen.Highdimensionaldirectrender- ing of time-varying volumetric data. In Proceedings of IEEE Visualization 2003, pages 417-424, 2003.
[33] J.Zhao,P.Forer,andA.S.Harvey.Activities,ringmapsandgeovisualization of large human movement fields. Information Visualization, 7:198-209, June 2008.
[34] T. Zuk and S. Carpendale. Theoretical analysis of uncertainty visualizations. In Proceedings of SPIE-IS&T Conference on Electronic Imaging,pages 66-79, 2006.
[35] T.Zuk,J.Downton,D.Gray,S.Carpendale,andJ.Liang.Explorationofuncertainty in bidirectional vector fields. In Proceedings of SPIE-IS&T Conference on Electronic Imaging, 2008.
