Figure 8(a): Quadratic Surfaces


Making this dataset could be done entirely with unu, but it would be ugly. There's a "test" program, teem/src/nrrd/test/quadvol which is used instead:

cd teem-1.5/src/nrrd
make
alias quadvol `pwd`/test/quadvol
Then, making the volume quad.nrrd is an unglamorous task, since it is really a 2-D array of subvolume, each of which has to be created sligtly differently. The ordering below tries to reflect the scan-line ordering of the subvolumes:
alias PAD "unu pad -min -1 -1 0 -max M+1 M+1 M -b pad -v -3"
alias QUAD "quadvol -s 20 20 20 -min -1.1 -1.1 -1.1 -max 1.1 1.1 1.1 "

setenv v 0.33
setenv V 0.66

QUAD -c  $V  -$V  -off  0.00 | PAD -o 04.nrrd
QUAD -c  $v  -$V  -off  0.22 | PAD -o 14.nrrd
QUAD -c  0   -$V  -off  0.45 | PAD -o 24.nrrd
QUAD -c -$v  -$V  -off  0.67 | PAD -o 34.nrrd
QUAD -c -$V  -$V  -off  0.90 | PAD -o 44.nrrd

QUAD -c  $V  -$v  -off -0.22 | PAD -o 03.nrrd
QUAD -c  $v  -$v  -off -0.00 | PAD -o 13.nrrd
QUAD -c  0   -$v  -off  0.23 | PAD -o 23.nrrd
QUAD -c -$v  -$v  -off  0.45 | PAD -o 33.nrrd

QUAD -c  $V   0   -off -0.45 | PAD -o 02.nrrd
QUAD -c  $v   0   -off -0.23 | PAD -o 12.nrrd
QUAD -c  0    0   -off  0.00 | PAD -o 22.nrrd

QUAD -c  $V   $v  -off -0.67 | PAD -o 01.nrrd
QUAD -c  $v   $v  -off -0.45 | PAD -o 11.nrrd

QUAD -c  $V   $V  -off -0.90 | PAD -o 00.nrrd

unu 2op x 00.nrrd 0 | unu 2op - - 10 -o BB.nrrd

unu join -i 00.nrrd 01.nrrd 02.nrrd 03.nrrd 04.nrrd -a 0 -o 4.nrrd
unu join -i BB.nrrd 11.nrrd 12.nrrd 13.nrrd 14.nrrd -a 0 -o 3.nrrd
unu join -i BB.nrrd BB.nrrd 22.nrrd 23.nrrd 24.nrrd -a 0 -o 2.nrrd
unu join -i BB.nrrd BB.nrrd BB.nrrd 33.nrrd 34.nrrd -a 0 -o 1.nrrd
unu join -i BB.nrrd BB.nrrd BB.nrrd BB.nrrd 44.nrrd -a 0 -o 0.nrrd

unu join -i 4.nrrd 3.nrrd 2.nrrd 1.nrrd 0.nrrd -a 1 \
 | unu axinfo -a 0 -sp 0.105263 \
 | unu axinfo -a 1 -sp 0.105263 -o quad.nrrd

rm -f {4,3,2,1,0}{4,3,2,1,0}.nrrd
rm -f {4,3,2,1,0}.nrrd
rm -f BB.nrrd

Making the color-wheel-square thing, hue.nrrd (and hue.png) is unfortunately just as much work:

echo "-1 1 -1 1" \
 | unu reshape -s 2 2 \
 | unu resample -s 512 512 -k tent -o x.nrrd
unu swap -a 0 1 -i x.nrrd \
 | unu flip -a 1 -o y.nrrd

unu 2op atan2 x.nrrd y.nrrd \
 | unu 3op clamp -0.7854 - 2.3562 \
 | unu rmap -min -0.7854 -max 2.3562 -m cmap.txt -o hue.nrrd

unu 2op + x.nrrd y.nrrd \
 | unu 2op + - 0.03 | unu 2op x - 40 | unu 1op erf \
 | unu 2op + 1 - | unu 2op / - 2 -o mask.nrrd

unu join -i x.nrrd y.nrrd -a 0 -incr \
 | unu project -a 0 -m l2 \
 | unu gamma -g 0.75 \
 | unu 3op clamp 0 - 1 \
 | unu resample -s x1 x1 -k gauss:10,3 \
 | unu 2op - - 0.02 \
 | unu 2op x - 1.03 \
 | unu 3op clamp 0 - 1 \
 | unu 2op x - mask.nrrd -o sat.nrrd

unu join -i sat.nrrd sat.nrrd sat.nrrd -a 0 -incr \
 | unu 3op lerp - 0.65 hue.nrrd -o hue.nrrd

unu quantize -b 8 -min 0 -max 1 -i hue.nrrd \
 | unu flip -a 2 -o hue.png

rm -f x.nrrd y.nrrd mask.nrrd sat.nrrd

Now we can actually make the transfer functions. Note that the domain variables for the hue table are gage(k1) and gage(k2):

echo "0 1" \
 | unu reshape -s 1 2 \
 | unu resample -s = 512 -k tent \
 | unu save -f text -o ramp.txt

echo "-1.0 0.0   -0.1 0.0    0.1 1.0    1.0 1.0" \
 | unu reshape -s 2 4 \
 | unu imap -i ramp.txt -r -m - \
 | unu axinfo -a 0 -l "A" \
 | unu axinfo -a 1 -l "gage(v)" -mm -1.0 1.0 -o val-txf.nrrd

unu axinfo -i hue.nrrd -a 0 -l RGB \
 | unu axinfo -a 1 -l "gage(k1)" -mm -1.6 1.6 \
 | unu axinfo -a 2 -l "gage(k2)" -mm -1.6 1.6 -o hue-txf.nrrd

rm -f ramp.txt

After all this, we produce a single rendering:

miter -i quad.nrrd \
  -k00 cubic:1,0 -k11 cubicd:1,0 -k22 cubicdd:1,0 \
  -or -rh -fr 1 -3 4.5 \
  -dn -2 -di 0 -df 2 -ar \
  -ur -1.3 1.3 -vr -0.6 1.15 \
  -ld -1 -1 -2 -ads 0.35 0.6 0.4 -sp 70 \
  -is 1024 769 -step 0.004 -nt 30 \
  -txf val-txf.nrrd hue-txf.nrrd -o quad-rend.nrrd

overrgb -i quad-rend.nrrd -g 1.3 -b 1 1 1 -o quad.png

rm -f val-txf.nrrd

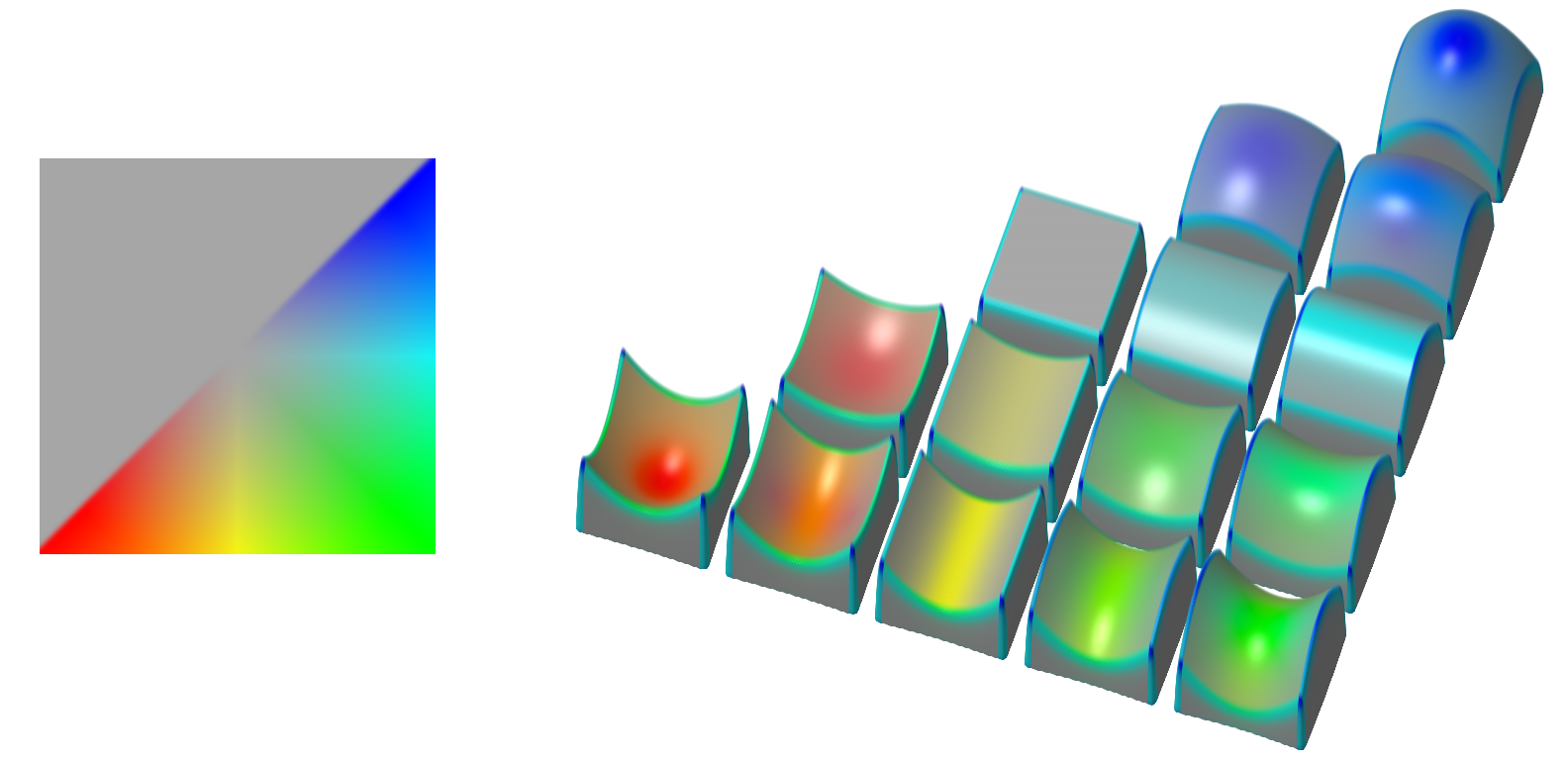

Now, the two images (hue.png, quad.png) have to be combined into a single figure quadfig.png:

unu pad -i quad.png -min 0 -560 0 -max M M M -o tmp.png
unu resample -i hue.png -s = 400 400 \
 | unu inset -i tmp.png -s - -min 0 40 160 -o quadfig.png
unu resample -i quadfig.png -s = x0.33 x0.33 -o _quadfig.png
unu resample -i quadfig.png -s = x0.14 x0.14 -o __quadfig.png
