MantaType Real Benchmark
Generated using:
manta_path_plot.pl -file mantatype-bench.csh -path Manta/build-yeager/boeing777-path2.txt -prefix mantatype-bench/path2 -sync 50 -title MantaType Real Benchmark -interval 200 300

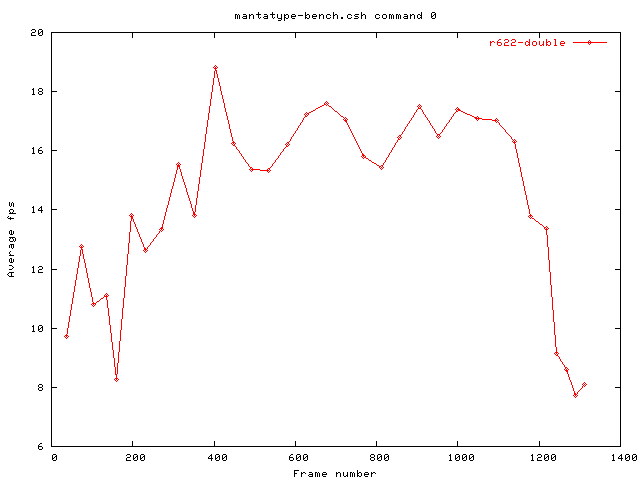

r622-double
dplace -c 0-61 Manta/build-yeager/bin/manta -res 1440x810 -np 56 -scene "Manta/build-yeager/lib/libscene_boeing777.so( -file /dev/shm/Boeing777.v3c1 -np 56 -lambertianalt )" -imagedisplay null -ui "camerapath( -file Manta/build-yeager/boeing777-path2.txt -sync 50 -behavior exit -warmup 10 -interval 200 300 )"
Min fps: 7.73525
Max fps: 18.8074
Median fps: 13.271325
Mean fps: 14.1196418181818
(eps)(txt)

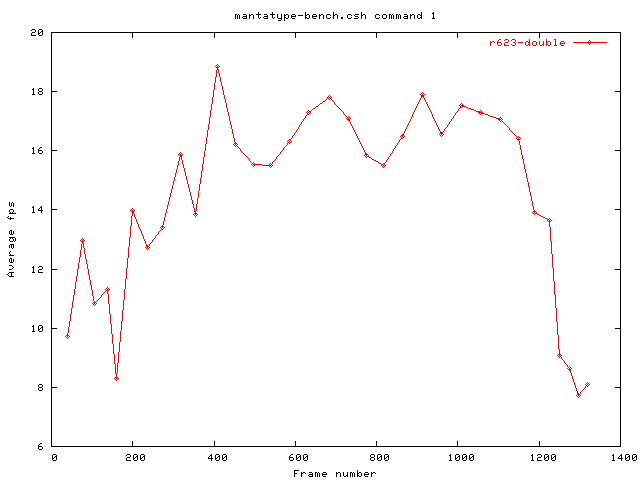

r623-double
dplace -c 0-61 Manta-double/build-revenue/bin/manta -res 1440x810 -np 56 -scene "Manta-double/build-revenue/lib/libscene_boeing777.so( -file /dev/shm/Boeing777.v3c1 -np 56 -lambertianalt )" -imagedisplay null -ui "camerapath( -file Manta/build-yeager/boeing777-path2.txt -sync 50 -behavior exit -warmup 10 -interval 200 300 )"
Min fps: 7.71169
Max fps: 18.8386
Median fps: 13.275145
Mean fps: 14.2161527272727
(eps)(txt)

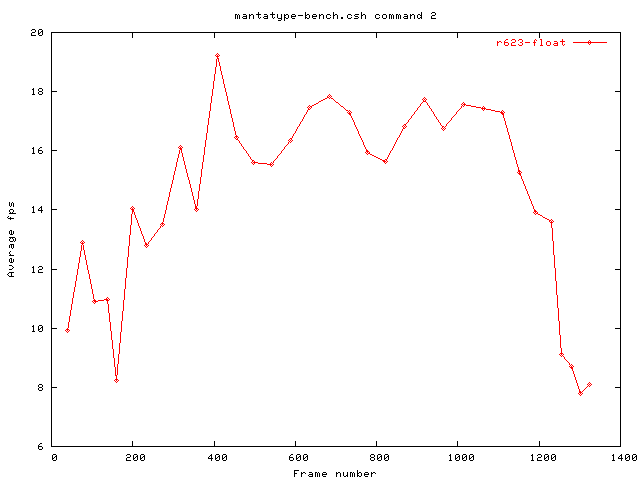

r623-float
dplace -c 0-61 Manta-float/build-revenue/bin/manta -res 1440x810 -np 56 -scene "Manta-float/build-revenue/lib/libscene_boeing777.so( -file /dev/shm/Boeing777.v3c1 -np 56 -lambertianalt )" -imagedisplay null -ui "camerapath( -file Manta/build-yeager/boeing777-path2.txt -sync 50 -behavior exit -warmup 10 -interval 200 300 )"
Min fps: 7.78983
Max fps: 19.2141
Median fps: 13.501965
Mean fps: 14.2661336363636
(eps)(txt)

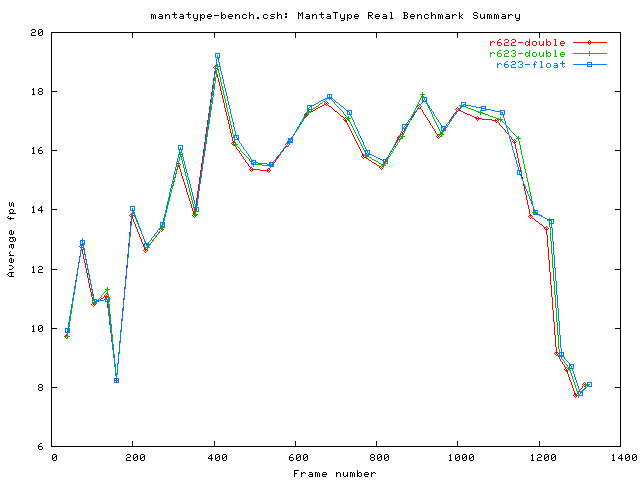

Summary
r622-double: dplace -c 0-61 Manta/build-yeager/bin/manta -res 1440x810 -np 56 -scene "Manta/build-yeager/lib/libscene_boeing777.so( -file /dev/shm/Boeing777.v3c1 -np 56 -lambertianalt )" -imagedisplay null -ui "camerapath( -file Manta/build-yeager/boeing777-path2.txt -sync 50 -behavior exit -warmup 10 -interval 200 300 )"
r623-double: dplace -c 0-61 Manta-double/build-revenue/bin/manta -res 1440x810 -np 56 -scene "Manta-double/build-revenue/lib/libscene_boeing777.so( -file /dev/shm/Boeing777.v3c1 -np 56 -lambertianalt )" -imagedisplay null -ui "camerapath( -file Manta/build-yeager/boeing777-path2.txt -sync 50 -behavior exit -warmup 10 -interval 200 300 )"
r623-float: dplace -c 0-61 Manta-float/build-revenue/bin/manta -res 1440x810 -np 56 -scene "Manta-float/build-revenue/lib/libscene_boeing777.so( -file /dev/shm/Boeing777.v3c1 -np 56 -lambertianalt )" -imagedisplay null -ui "camerapath( -file Manta/build-yeager/boeing777-path2.txt -sync 50 -behavior exit -warmup 10 -interval 200 300 )"
(eps)(txt)
